Four Backyard Play Surfaces That Meet Fall Height Rules for Homeowners

Bypave.n.turf

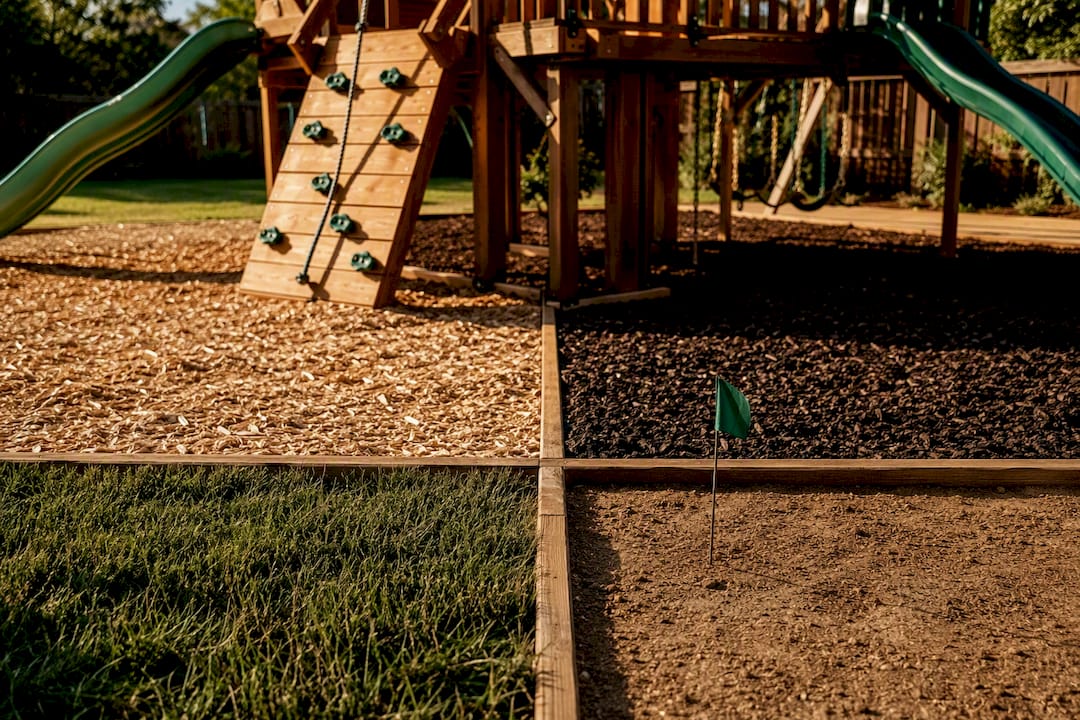

Backyard play area with varied fall surfaces

Four surface families cover almost every backyard need: poured-in-place or rubber tiles, engineered wood fiber, synthetic turf with a shock pad underneath, and loose-fill rubber mulch or pea gravel. The rule that matters more than any product label is simple: match the installed depth and material rating to your equipment’s critical fall height, then be honest about how much upkeep you’re willing to do. Both ASTM F1292 and CPSC guidance back that principle.

TL;DR:

  • Ensuring the installed depth of surfacing materials matches the equipment’s critical fall height is crucial for effective impact attenuation over time.
  • Unitary surfaces like poured rubber and tiles maintain their impact-absorbing properties better with less upkeep compared to loose-fill options such as engineered wood fiber or pea gravel.
  • Annual inspections of depth and condition are essential, as compaction and displacement decrease safety, with loose-fill surfaces losing impact protection even if rated for higher fall heights.
  • Accessibly compliant surfaces, such as poured rubber and high-quality tiles, stay firm and continuous, providing safer mobility for children with disabilities.
  • Professional installation provides optimal drainage, base grading, and fall-height matching, reducing trial-and-error and ensuring long-term safety.

Table of Contents

What are the most common backyard play area surfaces?

Each surface type solves the fall-protection problem differently, and the differences show up fast once you compare cost, upkeep, and comfort underfoot.

  • Poured-in-place rubber: a seamless, professionally installed rubber surface over a shock pad. Lasts over a decade, costs more upfront (professional installation only), stays cool in shaded areas, and resists pests. Meets accessibility needs well.
  • Rubber tiles: interlocking rubber squares, DIY-friendly or professional. Similar lifespan to poured rubber, easier to repair section by section, but seams can trip small feet if not maintained.
  • Engineered wood fiber (EWF): a loose, certified wood mulch product. Cheap to install, DIY-friendly, but compacts and needs annual topping off. Not wheelchair accessible once compacted.
  • Rubber mulch: loose rubber nuggets, often recycled tires. Long-lasting (10+ years) and low-pest, but can retain heat and migrate outside containment.
  • Synthetic turf with shock pad: turf over a foam or rubber underlayment. Low maintenance, pet- and kid-friendly, 15 to 20 year lifespan, moderate to high upfront cost.
  • Pea gravel and sand: the cheapest option by far, but poor impact attenuation, drainage-dependent, and a magnet for pests and debris. Not accessible.
  • Natural grass: free if you already have it, but muddy, uneven, and offers little real fall protection.

Pros and cons: trade-offs homeowners should weigh

Safety performance depends less on the material itself and more on how deep it’s installed and how well it’s compacted. Loose-fill products like EWF and pea gravel lose impact attenuation the moment they get kicked, raked thin, or washed toward the edges, which is exactly why installed conditions matter more than lab ratings alone.

  • Safety: unitary surfaces (poured rubber, tiles, turf with a shock pad) hold their depth better than loose-fill over time.
  • Cost and lifecycle: loose-fill wins upfront, unitary systems win on 10 to 20 year cost per use once you factor in replenishment labor.
  • Maintenance: EWF and rubber mulch need raking, topping off, and edging repair; turf and poured rubber need occasional rinsing and seam checks.
  • Accessibility: poured rubber and quality tiles are the best single-surface options for true ADA compliance because they stay firm and continuous, unlike loose-fill.
  • Climate: wet clay soils demand drainage planning regardless of surface; dark rubber surfaces run hotter in full sun.

Pro Tip: If your yard gets full afternoon sun, ask about lighter-colored or perforated rubber products. Standard black rubber can hit surface temperatures well above the air temperature on a hot day, according to outdoor flooring installation guidance.

What do ASTM and CPSC safety ratings actually mean?

Critical fall height is the maximum height a child can fall from a piece of equipment onto a given surface without exceeding injury thresholds measured in the lab. ASTM F1292 sets the test methods, using g-max and HIC scoring, that establish this number for each surfacing product at a specific installed thickness. A 3 inch pad rated for a 6-foot fall doesn’t protect a 9-foot swing set, no matter how good the brand name sounds.

The CPSC public playground safety checklist recommends homeowners check surfacing depth and condition at least once a year, since compaction and displacement quietly erode protection between inspections. Accessibility testing under ASTM F1951 measures whether a wheelchair can traverse the surface, but a lab pass doesn’t guarantee a decade of firmness if the material isn’t maintained.

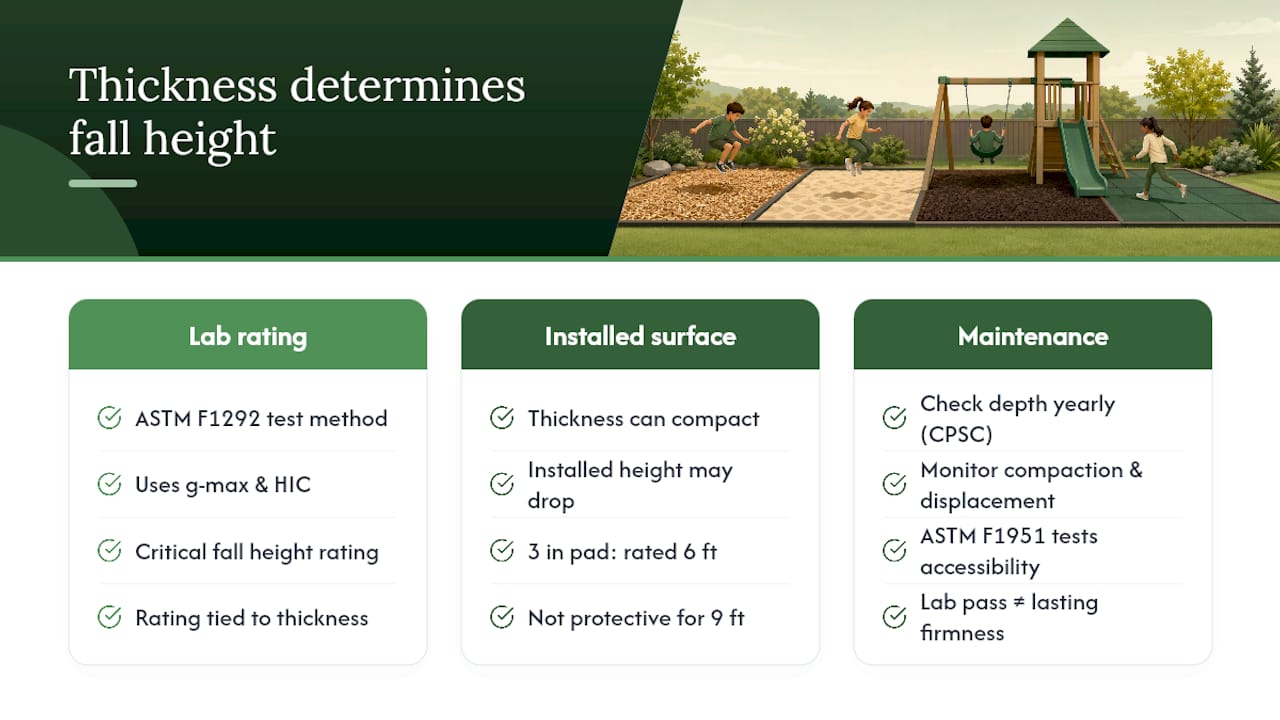

Diagram showing surface thickness and fall height

One number worth remembering: installed critical fall height can measure lower than the lab-tested rating once a surface compacts or loses thickness, which is why depth checks matter more than the sticker on the bag.

How do you choose the right surface for your yard and equipment?

  1. Measure the maximum fall height of your tallest piece of equipment, usually the top platform of a swing set or climbing structure, and match it to a surface rated for at least that height.
  2. Evaluate your site: check drainage, slope, soil type, sun exposure, and whether pets share the yard. Poor drainage rules out loose-fill unless you add a gravel base.
  3. Set your maintenance and budget profile: if you don’t want to rake or top off material every spring, cross loose-fill options off your list and lean toward turf or unitary rubber.
  4. Vet your supplier: ask for ASTM and IPEMA test data on the specific product, not a generic brochure. A vague warranty or no local references is a red flag worth walking away from.

Installation and site-prep essentials homeowners must know

Whatever surface you pick, the base underneath does most of the safety work. Loose-fill needs at least 6 to 9 inches of material over compacted stone, while unitary systems like poured rubber or turf need a properly graded, compacted gravel base and geotextile fabric to stop soil migration and ponding.

  • Excavate to the manufacturer’s specified depth before adding base material.
  • Install edging (timber, composite, or metal) to contain loose-fill and define the play zone.
  • Grade the base for drainage away from the play area, not toward it.
  • DIY works for small EWF or mulch projects; hire a professional turf installer for shock-pad systems, poured rubber, or anything involving drainage engineering.

Maintenance and inspection checklist to preserve safety

A surface that passed inspection on installation day won’t stay safe without upkeep.

  1. Check surfacing depth monthly in high-traffic zones like under swings and slide exits.
  2. Top off EWF or rubber mulch whenever depth drops below the manufacturer’s minimum, typically once or twice a year.
  3. Rinse and brush turf periodically to prevent debris buildup; inspect seams on tiles and poured rubber for lifting.
  4. Add wear mats under swings and at slide landings, since these high-impact zones lose material fastest.

Pro Tip: Keep a simple log with the date and depth measurement each time you check. It takes thirty seconds and gives you proof of maintenance if you ever need it for insurance or resale.

How much does surface choice actually affect injury risk?

Surface choice is one of the few playground variables a parent can fully control, and the data backs up why it deserves attention. Falls to the surface account for a large share of playground injuries treated in emergency rooms, and the severity of those falls correlates directly with how much energy the surfacing material absorbs on impact.

A properly installed, adequately deep surface rated for the equipment’s critical fall height significantly reduces the odds of a serious head injury compared to hard-packed dirt, thin grass, or under-filled loose material. The catch is that this protection is conditional, not automatic. Research on playground injury patterns notes that installed performance, not just the product’s lab rating, drives real-world outcomes — a surface that compacted six months after installation offers less protection today than it did on day one, even though the bag it came in still says “ASTM compliant.”

That’s the piece homeowners tend to miss. Buying a certified product is step one. Keeping it at the certified depth, season after season, is the step that actually prevents the injury. A rubber mulch bed that’s lost two inches of depth to displacement, or an EWF layer that hasn’t been topped off in three years, can quietly drop below its rated fall height without any visible sign beyond thinner-looking material. Annual depth checks aren’t a formality. They’re the difference between a surface that protects on paper and one that protects in practice.

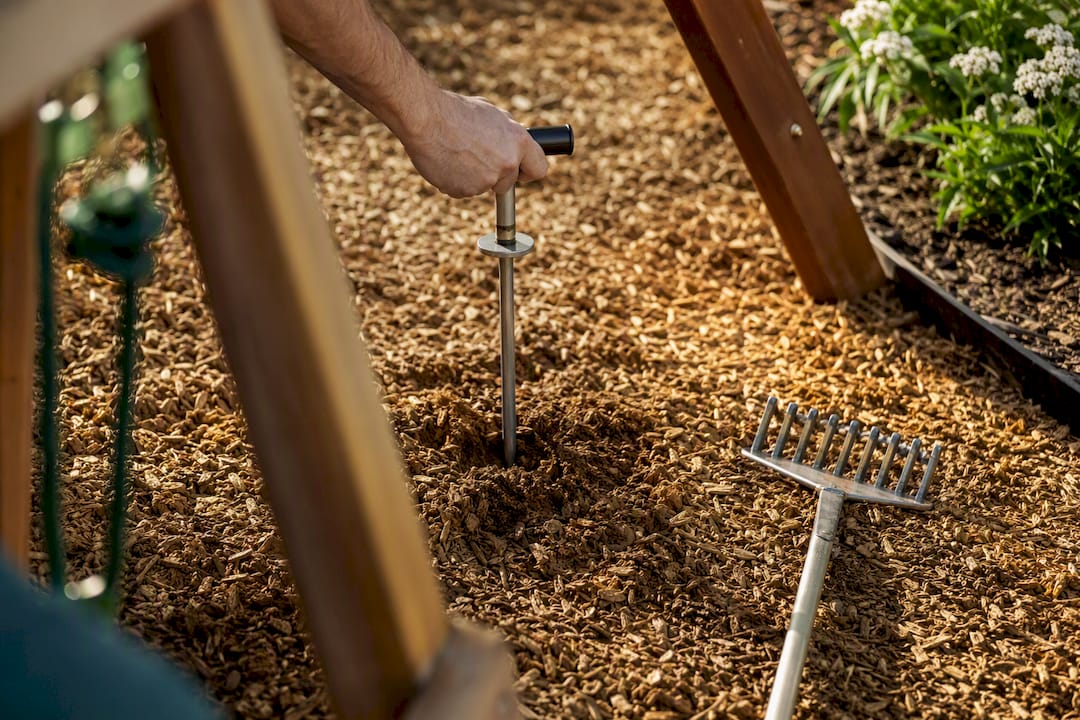

Hand checking loose-fill playground surface depth

Pave-N-Turf perspective: matching surfaces to real backyards

Most of the backyards we see fall into a handful of patterns: families wanting a pet-friendly play area that also survives soccer games, compact urban yards where drainage and cleanliness matter more than square footage, and households juggling both kids and dogs on the same patch of grass. Artificial turf with a shock pad covers the low-maintenance, pet-friendly case well, while paver edging handles containment for loose-fill zones that need a defined border.

— Everson

Get a professional installation quote for your backyard

Professional installers provide artificial turf systems with proper shock pads, paver edging for containment, and full site prep for backyard play areas in various locations. Rather than juggling loose-fill top-offs or guessing at base depth yourself, a professional install handles drainage, compaction, and fall-height matching in one project instead of a season of trial and error.

Pave-n-turf

If your yard mixes kids and pets, pet-friendly artificial turf gives you a surface that’s easy to hose off and holds up to daily wear far better than loose-fill. Homeowners who want a defined, tidy border around the play zone often pair turf with landscape pavers for the edging, and for a small transitional soft zone near a patio, an outdoor rug can bridge the gap without a full resurfacing project. Request an on-site estimate to see project examples and get a depth and drainage plan specific to your yard.

Sources

FAQ

What is the best material for a backyard playground surface?

For most families, synthetic turf with a shock pad or poured-in-place rubber offers the best balance of safety, low maintenance, and long lifespan, provided the depth matches your equipment’s critical fall height.

What is the best surface for a kids’ play area with accessibility needs?

Poured-in-place rubber and high-quality interlocking rubber tiles typically perform best for wheelchair and mobility-device access because they stay firm, stable, and continuous, unlike loose-fill materials that shift and compact.

What are some good ideas for playground surfaces on a budget?

Engineered wood fiber and rubber mulch cost less upfront and work well for DIY installs, as long as you commit to annual topping off and solid edging to keep material contained.

What is an appropriate playground surfacing material for home swing sets?

Match the material’s rated critical fall height to the swing set’s top platform height under ASTM F1292, and choose a depth the manufacturer specifies for that exact fall height, not a generic minimum.

How often should I check my play area surface?

Check depth and condition at least once a year, per CPSC guidance, and more often in heavy-use zones like under swings and slide exits.
