Paver Base Requirements: Depth, Materials, and Compaction

Bypave.n.turf

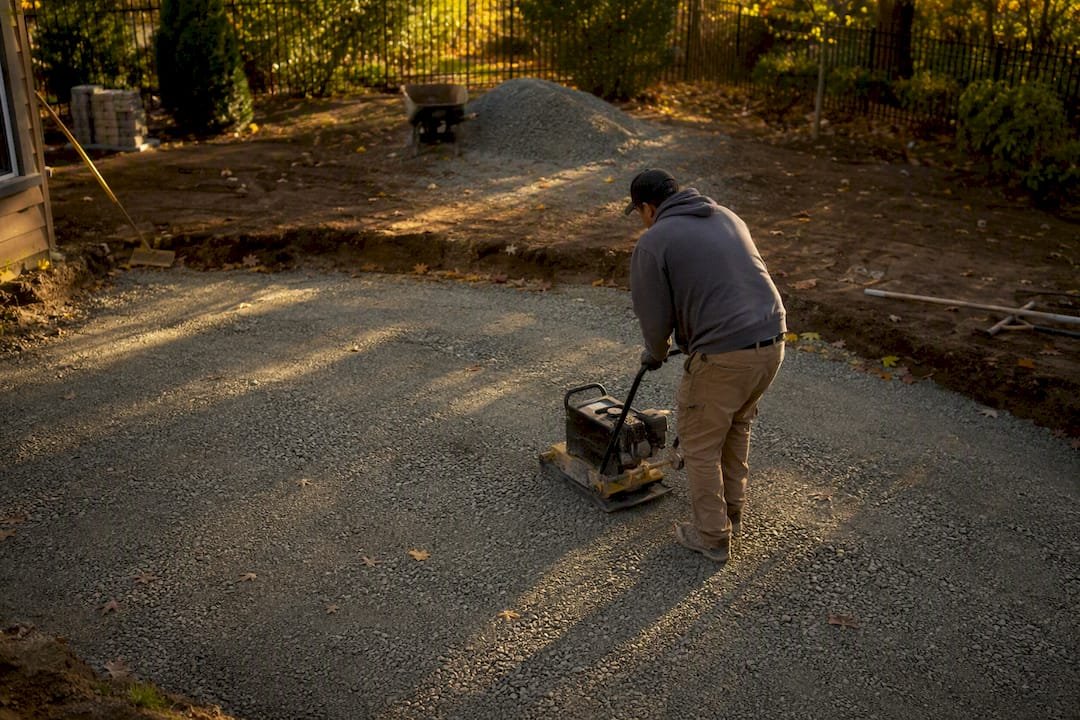

Worker compacting gravel base for pavers

A compacted base of reasonable thickness handles a pedestrian patio or walkway. A residential driveway needs a thicker base. Anything carrying heavy vehicles or regular commercial traffic needs a deeper base, often requiring professional engineering approval. Your best material is clean, angular crushed stone (ASTM No.57, sometimes called #57) or a dense-graded aggregate, topped with about 1 inch of bedding sand before the pavers go down.

That’s the baseline. If your soil is soft, your drainage is questionable, or you deal with hard freeze-thaw cycles, plan to add roughly 50% more depth for each adverse condition you’re facing.

  • Patio or walkway: a compacted base of appropriate minimum thickness
  • Residential driveway: a thicker compacted base
  • Heavy loads or parking areas: a substantial base thickness, often requiring engineering design

Quick math: According to CMHA construction guidance, heavy-duty commercial installations may require a very thick base depending on subgrade strength and expected loads. Your backyard patio isn’t a parking garage, but the same principle applies at every scale: the base does the work, the pavers just show up on top.

Key Takeaways

A durable paver surface depends on compacting the correct base depth in thin lifts, choosing angular aggregate over rounded stone, and building in proper slope from the start.

Point Details
Match depth to use Patios need 4 in., driveways 6 to 8 in., heavy loads 8 in. or more of compacted base.
Choose angular stone ASTM No.57 crushed stone or dense-graded aggregate interlocks; pea gravel and stone dust don’t.
Adjust for site conditions Add roughly 50% depth per adverse factor: weak soil, poor drainage, or freeze-thaw cycles.
Compact in lifts Build the base in 2 to 3 in. lifts, compacting each one before adding the next.
Hire it out when it counts Pave-n-turf installs base and pavers to CMHA compaction and depth standards across Dallas-Fort Worth and Austin.

Table of Contents

What Paver Base Materials Actually Belong Under Your Pavers?

Not all crushed rock is created equal, and this is where a lot of DIY projects go sideways before they even start. The material you choose determines whether your patio drains properly or turns into a puddle magnet, and whether your driveway holds a truck’s weight without rutting.

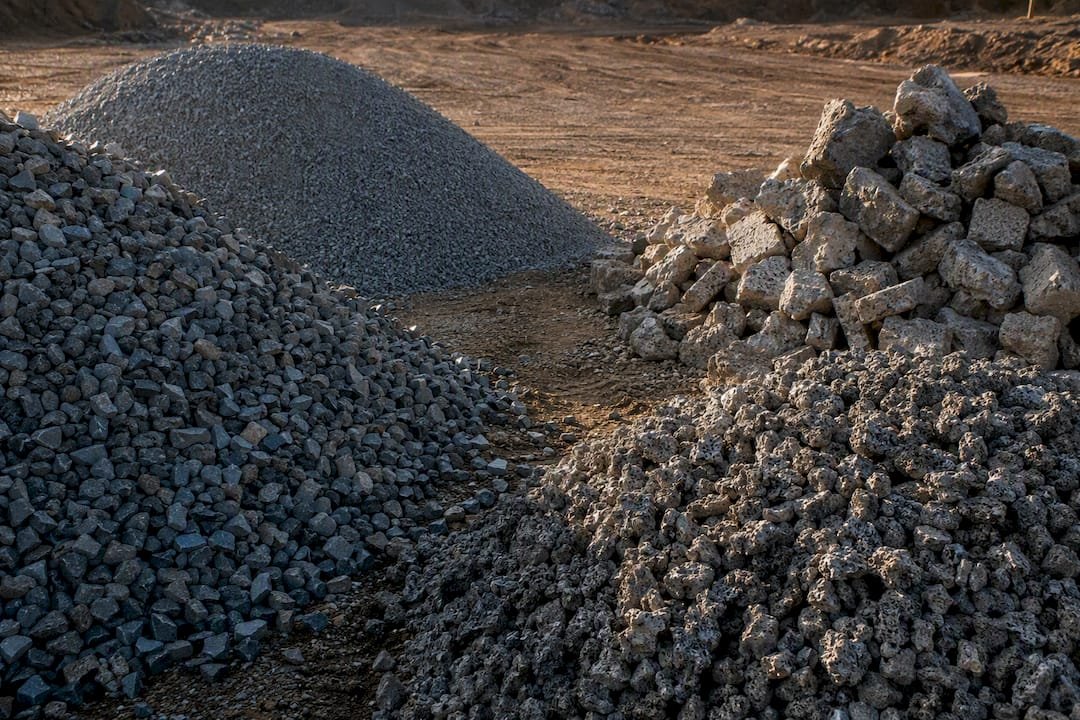

Different crushed stone aggregates for paver bases

Dense-graded aggregate (DGA) and ASTM No.57 crushed stone are the workhorses. DGA contains a mix of particle sizes, from larger stones down to fines, which lets it pack tight and carry serious load. That’s why it’s the default choice under driveways and any area that sees vehicle traffic. No.57 stone is more uniform and angular, and it locks together under compaction in a way rounded gravel never will.

Open-graded aggregate (OGA) is a different animal. It’s mostly uniform-sized stone with 30 to 40 percent void space, according to Belgard’s technical guidance on open-graded systems, so water moves through it instead of pooling on top of it. That makes it excellent for patios in wet climates or areas with poor natural drainage. The tradeoff: it typically needs thicker layers than dense-graded base to match the same load-bearing capacity, and it isn’t the right call for heavy vehicular areas without careful engineering.

Recycled concrete aggregate (RCA) is a solid eco-conscious option that performs similarly to virgin crushed stone once compacted. What you want to avoid: rounded pea gravel and stone dust or screenings. Pea gravel shifts underfoot because its round edges never interlock, and stone dust holds water and turns to mush.

For the bedding layer, stick with ASTM C33 or C144 concrete sand, or a chip stone product often labeled HPB or No.9. Skip stone dust here too. For the joints between pavers, polymeric sand outperforms plain ASTM C144 sand for most patios and walkways because it hardens against weed growth and ant intrusion.

Pro Tip: If your patio backs up to a downspout or low spot in the yard, lean toward open-graded base even if it costs a little more. A dry base outlasts a cheap one.

How Much Deeper Should Your Base Be for Bad Soil or Heavy Loads?

The numbers above assume decent soil and normal conditions. Real yards rarely cooperate that neatly. Four conditions push your required depth up, and they often show up together.

  1. Weak or organic soil — clay-heavy or topsoil-rich subgrade compresses unevenly under load, so it needs a deeper stone layer to spread that weight out.
  2. High water table or poor drainage — if water sits under your project site, that saturated soil loses strength and your base has to compensate.
  3. Frequent freeze-thaw cycles — repeated freezing and thawing heaves unstable bases, which is why colder regions typically run thicker sections than the Sun Belt.
  4. Heavy vehicle loading — trucks, RVs, or trailers on a driveway load the subgrade far harder than foot traffic ever will.

The CMHA and ICPI’s shared rule of thumb: add about 50% to your recommended minimum for each adverse condition present. A driveway with heavy clay soil might jump from 6 inches to roughly 9 inches. Stack a high water table on top of that clay, and you’re looking at closer to 12 inches or a redesigned drainage plan.

When your subgrade tests genuinely weak, or you’re pouring a base under a commercial parking area, that’s your cue to bring in a geotechnical engineer or an experienced contractor rather than guessing.

How Do You Actually Build a Compliant Paver Base?

This is where the plan becomes a shovel-in-hand project. Get the sequence right and the depth numbers above take care of themselves.

1. Calculate your excavation depth. Add your paver thickness, 1 inch of bedding sand, your compacted base depth, and a little room for edge restraints. A patio using 2-inch pavers over a 4-inch base needs roughly 7 inches of total excavation.

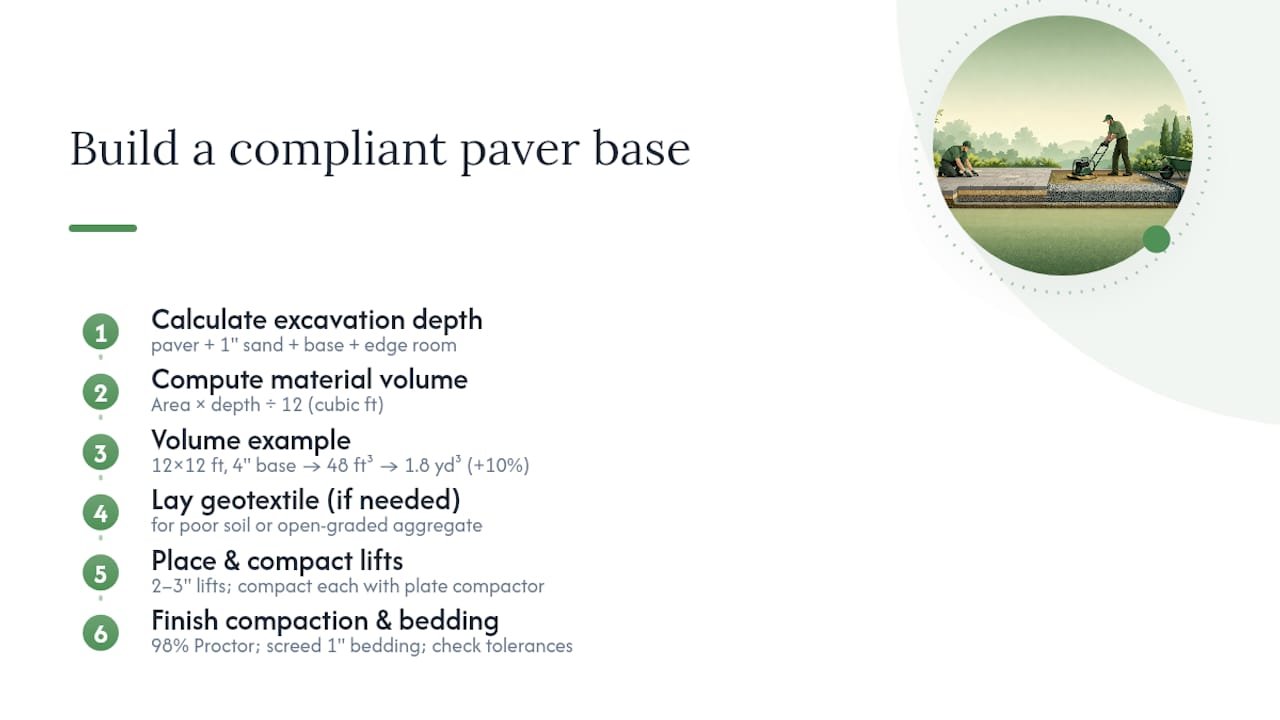

Diagram showing paver base depth and volume calculations

2. Figure your material volume. Multiply area in square feet by depth in inches, then divide by 12 to get cubic feet, per Family Handyman’s material-calculation guidance. A 12-by-12 patio (144 sq. ft.) at 4 inches deep needs 48 cubic feet of base, or about 1.8 cubic yards. Order 10% extra to cover compaction settling and waste.

3. Lay geotextile fabric if your soil is questionable or you’re using open-graded aggregate, which needs a fabric envelope on the bottom and sides to keep fines from migrating into the stone and clogging its drainage.

4. Place aggregate in 2 to 3 inch lifts and compact each one separately. Trying to compact a full 6-inch section in one pass leaves the bottom uncompacted, which is a leading cause of settling months later. Use a plate compactor rated for your material and lift thickness.

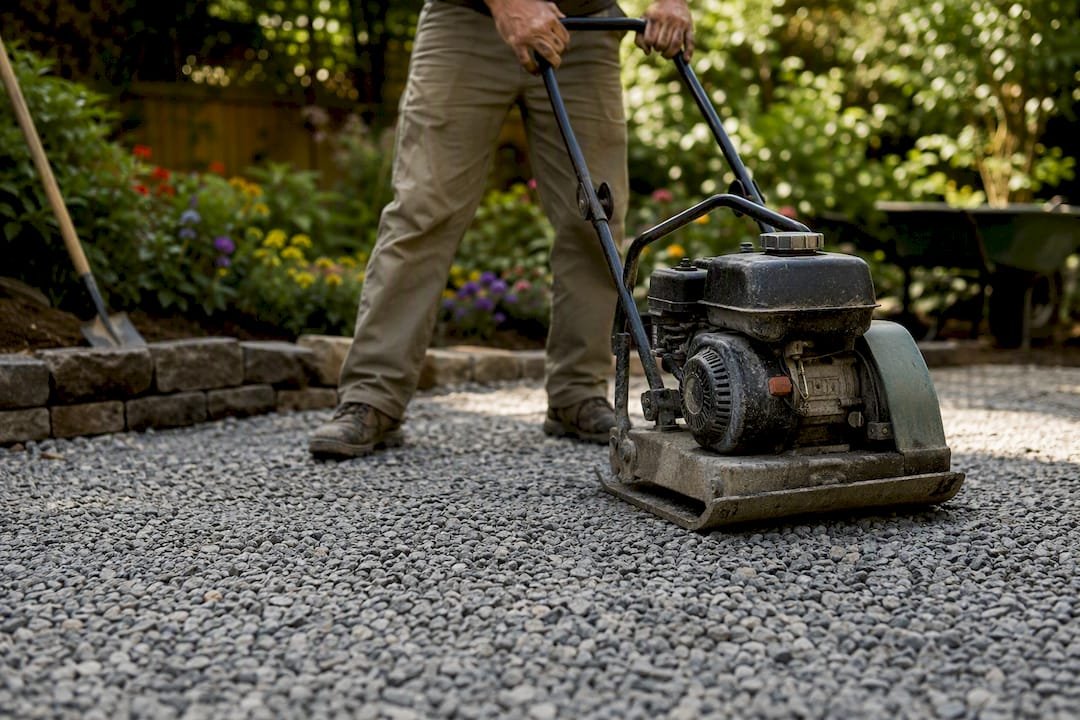

Plate compactor compressing gravel base lift

5. Target proper compaction density. ICPI/CMHA specifications call for at least 98% standard Proctor density (ASTM D698) under pedestrian and residential areas, and 98% modified Proctor (ASTM D1557) for heavy vehicular sections.

6. Screed a nominal 1-inch bedding layer over the compacted base using screed rails, and never compact the bedding sand itself. Set edge restraints on the compacted base, not on loose material.

7. Check your tolerances. The finished surface should stay within ±3/8 inch over any 10-foot span, and pavers should sit 1/8 to 1/4 inch above adjacent rigid surfaces like driveways or sidewalks.

Pro Tip: Extend your compacted base past the edge of the paved area by roughly the same distance as the base is deep. A 4-inch base gets 4 extra inches of base width on all sides. Skip this and your edges will be the first thing to fail.

If you’re prepping a base over existing turf rather than open soil, our guide on laying pavers on grass walks through the extra sod-removal and grading steps involved.

Why Does Slope Matter as Much as Depth?

Depth keeps your pavers from sinking. Slope keeps water from ruining everything you just built. CMHA engineers point out that managing water is the entire purpose of the base, which means slope planning should happen before you even pick a paver style.

Target a slope of 1/8 to 1/4 inch per foot, or roughly 1 to 2 percent, and build that grade into your subgrade first. Every layer above it, base and bedding alike, should mirror that same slope so water sheds consistently instead of pooling somewhere in the middle.

  • Use open-graded base when water needs to move through the section itself, especially on patios in low spots or heavy clay yards.
  • Use dense-graded base when load-bearing matters more than internal drainage, as with most driveways on decent soil.
  • Add an underdrain when your subgrade doesn’t drain well on its own or when nearby downspouts, pools, or slopes dump extra water into your project area.
  • Plan your outlet before you dig: water needs somewhere to go, whether that’s daylighting to open ground or tying into a storm drain.

What CMHA and ICPI Guidance Gets Right, and Where Installers Cut Corners

CMHA and ICPI’s published specifications set the numbers this article leans on: minimum depths, 98% Proctor compaction, and that 3/8-inch surface tolerance. CMHA has also flagged a common installer red flag: a contractor who won’t discuss base depth, material, or drainage in detail.

At Pave-n-turf, that conversation happens up front, every time, because a rushed base is the single most common source of paver failure. Our installation mistakes guide covers more of what to watch for.

Why the Base Deserves More Attention Than the Pavers Themselves

Most homeowners spend their planning energy picking paver color and pattern, then treat the base as an afterthought. That’s backwards. The base determines whether your project looks the same in year ten as it did in month one; the pavers are just the finish coat.

The conventional advice, “just get 4 to 6 inches of gravel down there,” isn’t wrong, but it’s incomplete in a way that causes real problems. It skips the compaction step almost entirely, and compaction is where most DIY patios actually fail. A 6-inch base compacted in one lazy pass performs worse than a properly built 4-inch base compacted in two lifts.

If you take one thing from this guide, prioritize compaction discipline and drainage planning over chasing an extra inch or two of depth. A well-compacted, well-drained 4-inch patio base will outlast a sloppy 6-inch one dug in a weekend rush. Depth is a number. Compaction and slope are craftsmanship, and craftsmanship is what actually holds up under Texas heat, clay soil, and the occasional flash flood.

Get Your Paver Base Built Right the First Time

Reading through these depth charts and compaction targets is one thing. Standing in your yard with a plate compactor at 4 p.m. on a Saturday is another. Pave-n-turf handles the entire base process for driveways, patios, and walkways across Dallas-Fort Worth and Austin, using the same compaction targets and material standards covered in this guide, so you skip the guesswork and the sore back.

Pave-n-turf

We build every project on properly compacted aggregate with correct slope planned from the subgrade up, not just the surface. That matters most on Texas clay, where an undersized or poorly compacted base fails faster than almost anywhere else in the country. If you’re weighing a DIY weekend against hiring it out, get a look at our landscape paver services and request a quote for your specific project, patio, driveway, or walkway alike.

Sources

FAQ

What is the best base to put under pavers?

Angular crushed stone like ASTM No.57 or a dense-graded aggregate is the best base material, because its sharp edges interlock under compaction while rounded gravel shifts and settles.

Can I use 3/4 gravel for paver base?

Round 3/4-inch gravel isn’t recommended because it lacks the angular edges needed to lock together; angular crushed stone in a similar size range compacts far more reliably.

How much paver base do I need for a 12×12 patio?

A 144-square-foot patio at a 4-inch compacted depth needs about 48 cubic feet, or roughly 1.8 cubic yards, of base material, plus about 10% extra for waste and compaction.

Can I lay pavers directly on dirt?

No. Pavers laid directly on dirt will shift, sink, and settle unevenly within a season or two, since bare soil can’t provide the stable, compacted support a proper base offers.
