400+ vs 30 in/hr: Pet Turf Drainage Checklist for Dallas Homeowners

Bypave.n.turf

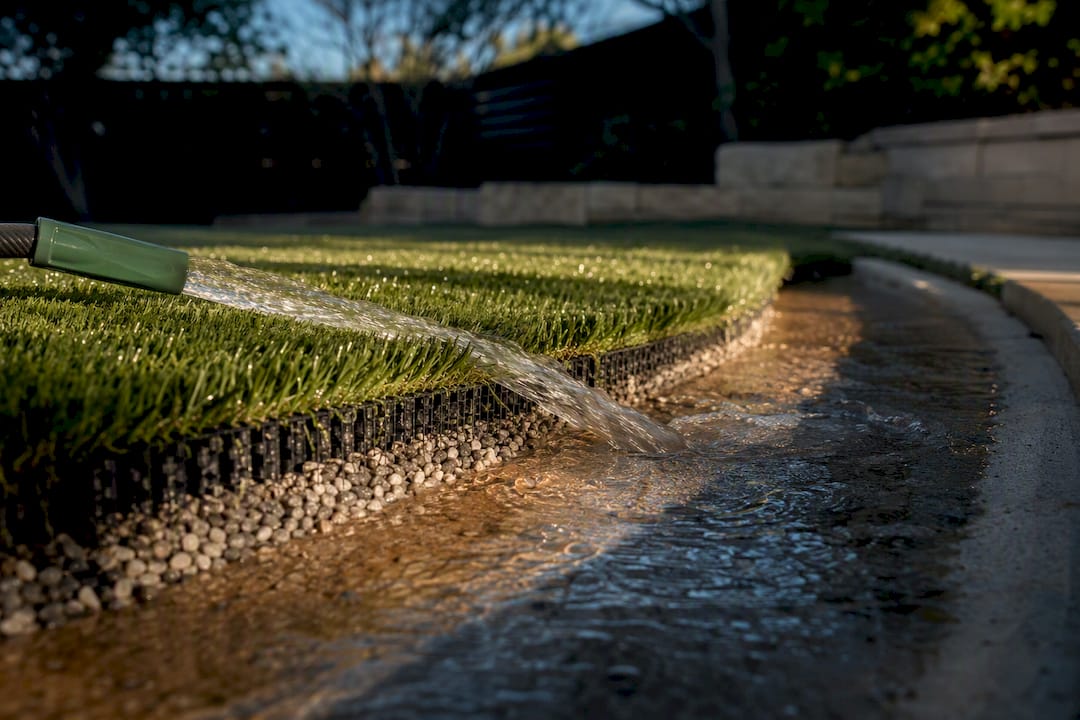

Water draining through pet turf during hose test

Yes, pet turf can drain fast and stay odor-free, but only when the backing, base, and grading are all done right. Fully permeable backing paired with a properly compacted aggregate base is the combination that matters most. A correctly built system can clear urine very quickly. A poorly built one traps liquid against the fabric, and that trapped moisture is where odor problems start.

TL;DR:

  • Fully permeable backing drains over 400 inches of water per hour, while hole-punched backing handles only around 30 inches, making the latter unsuitable for high-traffic pet areas.
  • A compacted angular crushed rock base of at least 4 inches is essential to ensure proper drainage and prevent shifting or clogging, especially in concentrated urine zones.
  • Proper grading with a slight slope directs liquid toward a drain or low edge, while insufficient slope or clogged fabric layers cause pooling and odor issues.
  • Using a drainage mat or air-drain panel under turf installed over concrete or patios is necessary to facilitate lateral water movement and prevent pooling.
  • Regular maintenance, including rinsing after use and annual inspections of base and edges, keeps drainage working efficiently and reduces odor buildup over time.

Table of Contents

What Is Pet Turf Drainage and How Does It Actually Work?

Pet turf drainage is the path liquid takes from the surface of the grass down through the product and into the ground, and every layer along that path either helps or hurts the process. Urine hits the blades first, then works through the backing material, past any infill, into the aggregate base below, and finally into native soil or a drain line. Weak drainage at any single layer backs up the whole chain, the same way a clogged drain backs up a sink even if the pipes below it are fine.

The backing layer is where most homeowners focus, and it deserves that attention. Hole-punched backing relies on small perforations spaced across the material, and it typically handles around 30 inches of water per hour. Fully permeable backing (also called flow-through backing) has no solid layer at all, letting liquid pass through nearly the entire surface, and it’s commonly rated at 400 or more inches per hour. For a dog run that sees repeated urination in the same few spots, that gap in performance is the difference between a yard that smells fresh and one that doesn’t.

But backing is only step one. The base is where drainage performance actually gets engineered, since it has to move a large volume of liquid horizontally and vertically without collapsing or clogging.

Here’s the flow path broken down:

  • Surface: blades shed most solid waste and let liquid pass through immediately after a rinse.
  • Backing: hole-punched or fully permeable material determines how much liquid can pass per hour.
  • Infill: zeolite or antimicrobial infill traps some liquid temporarily and helps with odor, but doesn’t block flow if selected correctly.
  • Base: compacted aggregate holds the whole structure up while channeling liquid downward and outward.
  • Soil or drain: native ground absorbs the water, or a French drain or perforated pipe carries it away.

Statistic Callout: Hole-punched backing drains around 30 inches per hour. Fully permeable backing drains 400+ inches per hour. For a household with more than one dog, that fourteen-fold difference is the reason installers steer pet-specific jobs toward flow-through material every time.

Backings, Infill, and Base Materials: What Each Layer Contributes

Every component in a pet turf system has one job, and confusing those jobs is where a lot of installs go sideways. The backing controls how fast liquid clears the surface. The base controls where that liquid goes next and whether the whole structure stays stable under paws and weather. Infill handles odor, not drainage.

Backing: fully permeable backing is the better choice for any area dogs use regularly. Hole-punched backing works fine for light-traffic ornamental lawns, but a dog relief zone concentrates urine in a handful of spots, and that concentration is exactly where hole-punched backing falls behind.

Base material: this is non-negotiable ground. The right choice is angular crushed rock, often called Class II road base, because its jagged edges lock together under compaction and leave open pore space for liquid to move through. Avoid:

  • Decomposed granite (DG): looks solid at first but contains fines that break down under repeated urine and rinse cycles.
  • Sand alone: compacts too tightly over time and loses porosity, which slows drainage to a crawl.
  • Rounded pea gravel: doesn’t lock up under compaction, so the base shifts and creates low spots.

Infill: zeolite infill and antimicrobial infill both help control odor by capturing ammonia and slowing bacterial growth, but neither one substitutes for a properly draining base. Think of infill as a filter that catches what drainage doesn’t fully carry away, not a replacement for the plumbing underneath. Turf infused with antimicrobial protection during manufacturing also tends to outlast spray-on treatments, which wear off with rinsing and foot traffic.

Drainage mats: if you’re installing over a patio, rooftop, or any concrete surface, a raised air-drain panel is required. These panels create a gap (often with air voids exceeding 90%) that lets liquid move laterally toward an outlet instead of pooling against solid concrete underneath, similar to the setups described by synthetic landscaping resources covering odor-focused turf design.

Pro Tip: Ask your installer which backing type they default to for pet jobs. If the answer is “whatever’s cheapest,” that’s a signal to ask more questions before signing anything.

Installation Specs That Determine Long-Term Drainage Performance

Getting drainage right happens almost entirely during installation, not afterward. Once the base is compacted and the turf is rolled out, you’re stuck with whatever decisions were made underneath it. Here’s what to verify before work begins or while it’s underway.

  1. Excavation depth. Standard lawns typically call for a few inches of base material, but pet areas require a deeper base to manage higher urine volume and concentration effectively.
  2. Base material and compaction. Angular crushed rock compacted in 2-inch lifts (thin layers, each compacted before the next goes down) locks together far better than dumping the full depth at once. Skipping this step leaves voids that settle unevenly under paw traffic.
  3. Slope and grading. Pet turf should have a slight slope to direct liquid toward a drain, a lower edge, or a gravel band rather than allowing it to pool in low spots.
  4. Fabric selection. Skip generic weed barrier fabric rated for light garden use. Either use a high-permeability geotextile or, if the subgrade and base are properly prepared, omit the fabric entirely, since a low-permeability layer creates a clog point right where you least want one.
  5. Edge and perimeter details. Edges need a firm border, whether that’s paver edging, steel, or a compacted soil berm, to keep the base from washing out at the seams.
  6. Concrete overlays. Installing over a patio or driveway means adding an air-drain mat system beneath the turf so liquid has somewhere lateral to travel, since concrete itself absorbs nothing.

Common mistakes trace right back to skipping one of these steps: insufficient excavation depth, base material that includes fines, and non-permeable fabric are the three that show up most often in installer post-mortems.

Why Is My Pet Turf Pooling Water or Smelling Bad?

Most drainage complaints trace back to one of three root causes, and matching the symptom to the cause tells you whether a quick fix will work or whether you’re looking at a base rebuild.

Pooling after rinsing almost always means insufficient slope, a clogged fabric layer, or a low spot that developed as the base settled. If water sits for more than about 30 seconds after a hose test, that’s your signal something below the surface needs attention.

Persistent odor even after rinsing usually points to urine trapped between backing and base rather than drying up or draining through, which lets bacteria keep working on it. A spongy or soft base underfoot means the wrong material was used (often DG or a limestone mix with fines) or compaction was rushed.

Here’s how to work through it:

  • Try a power rinse with an enzyme cleaner first. This handles surface-level buildup without disturbing the structure.
  • Retest with a hose at the same spot and time it. Anything under 30 seconds is a good sign.
  • If pooling persists, expect spot re-leveling or a partial base rebuild rather than another round of cleaning products.
  • Spongy areas require excavation and replacement, since compaction issues don’t resolve on their own.

Pro Tip: Time your hose test with your phone’s stopwatch. It sounds simple, but “it drains slow” and “it takes 45 seconds” are two very different conversations to have with an installer.

When a fix requires digging past the turf and backing, that’s the point to call a professional rather than keep treating symptoms on the surface.

The Maintenance Routine That Keeps Drainage Working

Drainage and maintenance work as a team. A well-built system needs less upkeep, but no system stays maintenance-free forever, since infill settles, debris accumulates, and edges shift with weather.

  1. After each use: a quick spot rinse on high-traffic urine spots keeps ammonia from building up between cleanings.
  2. Weekly: an enzyme-based wash breaks down bacteria and residue that plain water rinsing leaves behind.
  3. Monthly: brush the fibers to keep them upright and check infill levels, since compaction over months flattens infill and reduces its odor-fighting surface area.
  4. Annually: a full inspection covering base firmness, edge integrity, and drain outlets catches small problems before they become expensive ones.

Fast-draining systems, especially those with fully permeable backing, need less frequent deep cleaning because liquid simply doesn’t linger long enough to build bacterial load. Slower-draining hole-punched systems need more consistent attention to keep odor from developing.

Statistic Callout: A properly draining system clears standing liquid in seconds. If your hose test consistently runs past 30 seconds, no amount of enzyme cleaner will fully solve the odor problem underneath.

Refresh infill every couple of years in high-traffic zones, and lean toward zeolite or antimicrobial blends when you do, since both are built specifically to interrupt the ammonia and bacteria cycle that causes lingering smell. For deeper cleaning technique and product recommendations, our guide on removing dog urine smell from artificial grass walks through the process step by step.

When Professional Evaluation Makes the Difference

Some drainage problems are DIY-fixable. Others aren’t, and knowing the difference saves you from throwing money at symptoms instead of the cause. Pave-n-turf approaches every pet turf installation across the Dallas-Fort Worth and Austin areas as a system, not a single product, which means backing choice, base depth, and grading get evaluated together rather than picked separately.

A professional site evaluation typically includes a compaction test on the existing base, a check of drainage direction and outlets, and soil assessment where native ground absorption is in question. If a rebuild is needed, that usually means removing the top layer, re-excavating to proper depth, and recompacting with angular base material in lifts rather than patching over the existing problem.

For homeowners comparing options, our pet-specific turf guide and Dallas installation overview cover what a properly specified system looks like before you sign a contract. Complex soil conditions or concrete overlays are exactly the cases where an on-site evaluation beats a guess.

Designing Drainage for Actual Pet Waste Volume

Standard lawn drainage assumes rainfall, which spreads evenly and infrequently. Pet waste doesn’t behave that way. Dogs return to the same handful of spots repeatedly, which means those specific zones handle far more concentrated liquid than the rest of the yard ever sees.

That reality changes how a system should be designed, not just what materials go into it. Homes with multiple dogs, or areas used as designated relief zones, need fully permeable backing as a baseline rather than an upgrade, plus base depth on the higher end of the 4-inch-plus range.

Some installers add a gravel band or a secondary drain line beneath the most heavily used corner of a yard, treating it almost like a small French drain embedded in the base. That extra engineering matters most for apartment relief zones, daycare turf, or any household running more than one dog through the same 10-square-foot patch daily.

The grading also deserves a second look in these zones. A slight additional slope, even a half-inch more drop over the relief area specifically, gives concentrated liquid a faster exit instead of asking the base to absorb and hold it until it filters through evenly. None of this requires exotic materials. It requires treating the busiest section of turf as its own mini-system within the larger install, sized for actual use rather than for the yard’s total square footage.

Environmental and Regulatory Factors Worth Knowing

Drainage decisions aren’t purely a performance question. Where that liquid ends up after it leaves the base matters too, both environmentally and, in some cases, legally.

Municipalities vary on stormwater rules, and some jurisdictions regulate how much impervious surface a property can have or require drainage to route away from shared property lines and public storm drains rather than directly into them. A properly graded pet turf system that channels liquid into native soil for natural filtration generally raises fewer concerns than one that dumps concentrated runoff toward a neighbor’s yard or a street drain. Checking local guidance before installation, particularly for larger commercial properties or HOA-governed neighborhoods, avoids problems after the fact.

Material choice carries an environmental angle too. Turf systems that drain properly reduce standing water, which in turn reduces mosquito breeding conditions, a genuine benefit in humid climates where standing water is a recurring nuisance. Choosing infill without harsh chemical additives, and pairing it with a base that filters liquid through soil rather than concentrating it, keeps the system working with the surrounding landscape instead of against it.

None of this should scare anyone off installing pet turf. It’s simply a reminder that drainage design is a site-specific decision, one that accounts for your yard’s slope, your neighbors, and your local water rules just as much as it accounts for your dog’s bathroom habits.

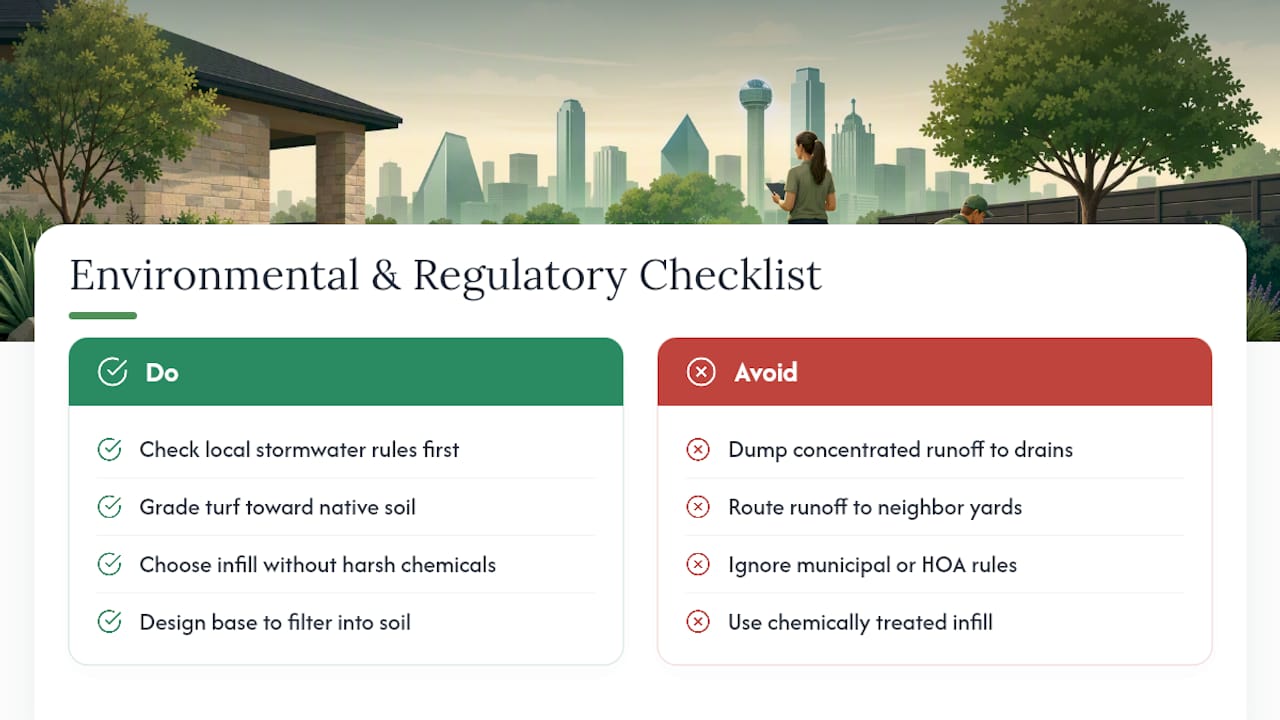

Environmental and Regulatory Factors Worth Knowing — overview diagram

How to Check Whether Your Soil Drains Well Before You Install

Before any turf goes down, the ground underneath deserves a real test, because native soil that drains poorly will undermine even the best backing and base combination.

The simplest test is a percolation test: dig a hole roughly a foot deep, fill it with water, and time how long it takes to fully absorb. Clay-heavy soil can take hours, while sandy or loamy soil often clears in well under an hour. Slow-draining soil doesn’t rule out pet turf, but it does mean the base needs to work harder, often with added depth or a supplemental drain line running to a lower point on the property.

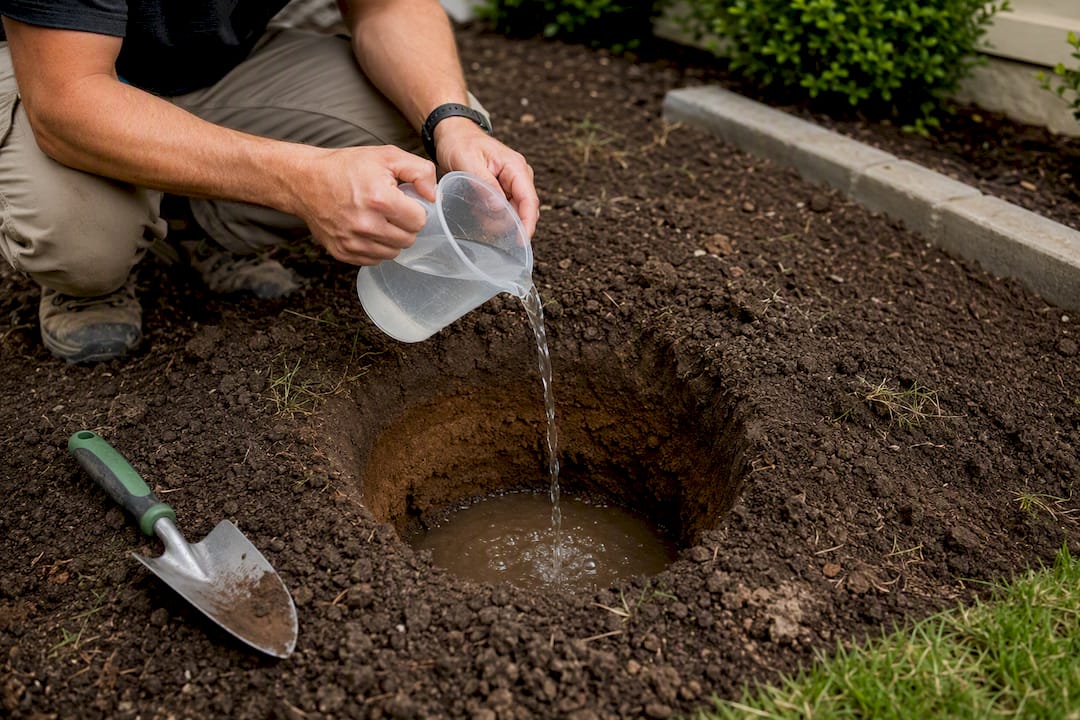

Hands conducting a backyard soil percolation test

Look at your yard after a heavy rain, too. Areas that puddle and stay wet for a day or more are telling you where the base will need reinforcement or where a French drain might be worth adding before turf goes down. Grading around the house matters as well. If water currently runs toward the spot where pet turf is planned, that flow needs to be redirected during excavation, not left for the turf to somehow absorb.

A quick soil test isn’t a guarantee of anything on its own, but skipping it is how homeowners end up with a beautiful lawn that pools water every time it rains.

What Actually Matters Most in a Pet Turf System

Most drainage advice online focuses on the turf product itself, the backing type, the fiber, the color. That’s backward. The base is where drainage performance actually lives, and it’s the part nobody sees once the project wraps up, which is exactly why it gets rushed or cheapened on too many jobs.

The conventional wisdom oversells infill as an odor fix. It’s a supporting player, not the star, and treating it as the primary defense against smell sets homeowners up for disappointment when the base underneath isn’t pulling its weight. If you take one thing from this guide, prioritize verifying base depth and material before you ever discuss backing type or infill brand with an installer. Ask what’s going 4 inches down, not just what you’ll be walking on.

Pave-N-Turf’s approach reflects that priority order: base and grading first, backing selection second, infill and finishing touches last. That sequence is why a properly built system keeps working for years instead of needing a rescue project eighteen months in.

— Everson

Get Pet Turf That Actually Drains, Installed Right the First Time

Pave-n-turf builds pet turf systems around the base and grading first, not the product label, which is the exact sequence this guide just walked through. That’s the difference between a yard that drains in seconds and one that needs a rescue project within a year or two.

Pave-n-turf

Serving homeowners across the Dallas-Fort Worth and Austin areas, Pave-n-turf specs fully permeable backing, compacted Class II road base at proper depth, and correct grading on every pet installation, then backs it with the kind of customer service reflected in its Google and Yelp ratings across DFW. If you’re also weighing paver edges or a patio border around the new turf area, our landscape paver options pair naturally with a properly graded pet area. Ready to see what your yard needs? Request a pet turf site evaluation and get a plan built around your soil, your slope, and your dog’s actual habits.

Sources

FAQ

What Is the Best Backing for Pet Turf Drainage?

Fully permeable (flow-through) backing is the better choice for pet areas, draining 400 or more inches per hour compared to roughly 30 inches per hour for hole-punched backing.

How Deep Should the Base Be for Pet Turf?

Standard lawns typically use 3 to 4 inches of compacted base, but pet turf areas need 4 inches or more of angular crushed rock or Class II road base to handle concentrated urine volume.

Does Infill Stop Pet Turf From Smelling?

Infill like zeolite or antimicrobial blends helps control odor by trapping ammonia and slowing bacterial growth, but it works alongside proper drainage rather than replacing it.

How Do I Know if My Pet Turf Has a Drainage Problem?

Run a hose test on a urine spot. Water should disappear within seconds, and pooling that lasts longer than about 30 seconds signals insufficient slope, base issues, or a clogged fabric layer.

Can I Install Pet Turf Over Concrete or a Patio?

Yes, but it requires a drainage mat or air-drain panel underneath the turf to create a path for liquid to move laterally toward an outlet, since concrete itself won’t absorb anything. Pave-n-turf handles these overlays as part of its pet turf installation service.
