Designers & Safety Officers: Exact Playground Fall Height Measurement

Bypave.n.turf

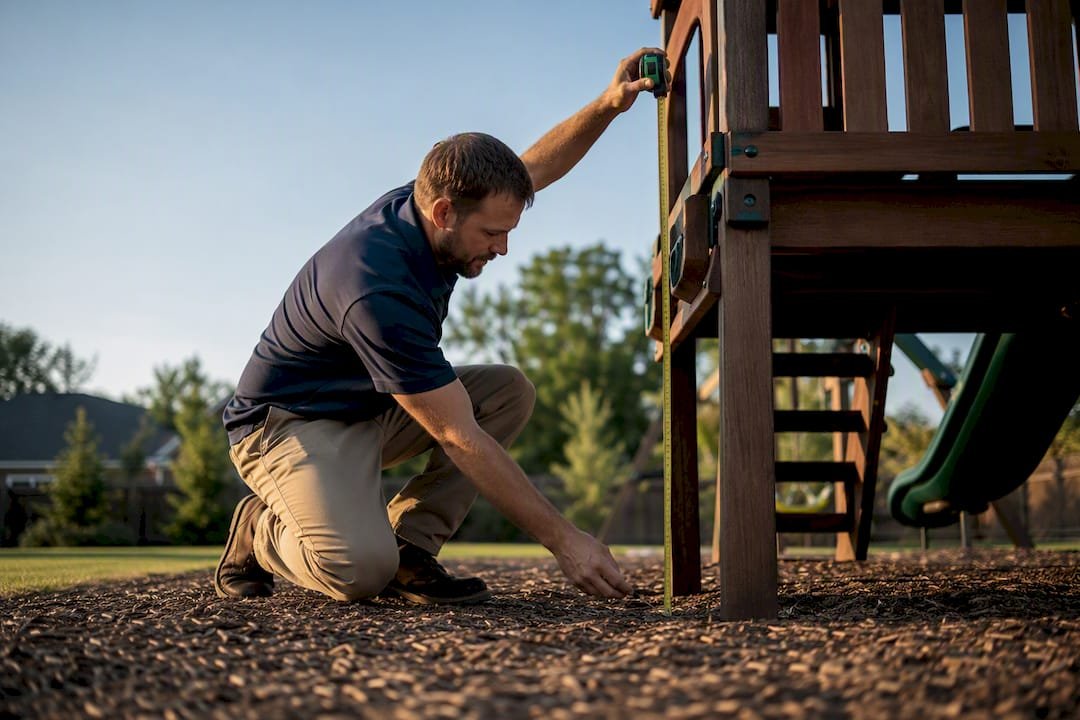

Safety officer measuring playground fall height

Playground fall height is the vertical distance from a piece of equipment’s highest designated play surface down to the protective surfacing below it. The rule that matters most for compliance: the surfacing’s lab-tested critical height must equal or exceed that fall height. Full stop. Get that one match right, and you’ve handled the core requirement behind the CPSC Public Playground Safety Handbook and ASTM F1292.

TL;DR:

  • The surfacing’s critical height must be tested and certified to match or exceed the highest designated play surface’s fall height, not just the equipment’s tallest point.
  • Measuring fall height correctly involves identifying all designated play surfaces, measuring vertically, and recording the greatest height across overlapping use zones to ensure compliance.
  • A surfacing’s lab-tested critical height (ASTM F1292) represents ideal conditions, but installed field performance (ASTM F3313) reflects real-world durability and safety over time.
  • Proper surfacing depth varies by material, with loose-fill recommended at roughly 25% above minimum to account for settling, and unitary surfaces offering lower maintenance but specific thickness ratings.
  • Regular maintenance, remeasuring, and inspection are essential to retain compliance, especially after weather events or repairs that can diminish impact absorption qualities.
Pave-n-turf
pave-n-turf.com
Build A Safer Playscape Surface
Pave-N-Turf provides playscape turf and paving solutions for durable, low-maintenance outdoor areas across the Dallas-Fort Worth area.

Explore playscape solutions

Table of Contents

Why Fall Height Definitions Matter for Injury Prevention

The CPSC handbook defines fall height as the distance from the highest designated play surface to the surfacing beneath it, and that phrase does a lot of work. “Designated play surface” means somewhere a child is expected to stand, sit, or climb, not the tallest point of a decorative post or a canopy. Get that wrong and every downstream calculation is off.

Here’s what ties definitions to real-world outcomes:

  • Critical height is the fall height below which a surface is unlikely to cause a life-threatening head injury, based on lab testing under ASTM F1292.
  • The headform drop test behind that rating measures g-max and HIC (Head Injury Criterion), two metrics that translate impact force into injury risk.
  • Fall height, not the height of a slide’s highest bar or a climber’s tallest handhold, is what governs how much surfacing depth or pad thickness you need.

Component height gets contractors in trouble more than any other mix-up on a site visit.

How Do You Measure Playground Fall Height Correctly?

Measuring fall height sounds simple until you hit a composite structure with three deck heights and a slide bolted to the tallest one. Here’s the process that holds up under inspection:

  1. Identify every designated play surface on the equipment, referencing ASTM F1487 definitions for what counts as one.
  2. Measure vertically from each designated play surface straight down to the surfacing material, not at an angle and not to the ground beneath a raised platform.
  3. Flag special cases early. Embankment slides measure from the point where the slide bed meets the ground, not from an arbitrary top point. Decks smaller than 2 inches by 2 inches generally aren’t counted as designated play surfaces.
  4. On composite structures, take every measurement that overlaps a use zone, then apply the greatest fall height across that whole zone. A CPSC staff letter confirms this is the standard approach when zones from different components overlap.
  5. Document everything. Photograph each measurement point, log the tape reading, note the equipment model, and record the date. A report with no photos is hard to defend later.

Skipping step 4 is the single most common error auditors report.

Critical-Height Lab Tests vs. Installed Field Tests

A surfacing certificate and a surfacing that performs are two different things, and confusing them is where a lot of compliance programs quietly fail.

ASTM F1292 is the lab test. A headform drops from a set height onto a surfacing sample under controlled conditions, and the resulting g-max and HIC readings produce a critical-height rating, essentially the ceiling fall height that surface can absorb safely. ASTM F3313 is the field test. It measures how that same surfacing performs once it’s actually installed, compacted, weathered, and walked on.

  • F1292 tells you what a material is capable of in ideal lab conditions.
  • F3313 tells you what your installed surface is actually delivering, right now, on your site.
  • A manufacturer’s data sheet citing F1292 is a starting point, not a finish line, especially once compaction, contamination, or freeze cycles enter the picture.

Pro Tip: Never accept a critical-height number alone on a contract or warranty claim without asking whether installed field testing under F3313 has ever been performed on that surface.

Surfacing Materials and Minimum Depth Guidelines

Once you know the fall height, the surfacing choice narrows fast, and depth is where most specifications go wrong. Loose-fill materials compress under foot traffic and rain, so the CPSC handbook’s updated guidance recommends installing roughly 25% more material than the stated minimum to account for settling over time.

Rough minimums by material type:

  • Engineered wood fiber, sand, or pea gravel: commonly no less than 9 inches deep for the fall heights they’re rated to protect.
  • Shredded or bonded rubber mulch: sometimes rated to a similar depth with lower minimums (around 6 inches) for certain products, depending on the manufacturer’s tested rating.
  • Unitary surfacing (poured-in-place rubber, rubber tiles, or artificial turf over an engineered shock pad) carries its own certified critical-height rating tied to the pad thickness rather than a loose-fill depth table.

Unitary systems have one real advantage here: they don’t compress, shift, or need topping off every season the way loose fill does. That’s a maintenance calculus every specifier should weigh, not just a materials one. A resource like Pave-n-turf’s guide to backyard play surfaces breaks down how turf-plus-pad assemblies compare to loose-fill on maintenance labor.

Pro Tip: Ask any surfacing supplier for the pad thickness tied to their critical-height rating in writing. “Compliant surfacing” without a stated pad thickness is not a specification.

Use Zones and Clearance Requirements Around Equipment

Surfacing depth solves half the problem. Area solves the other half. CPSC staff guidance sets a minimum use zone of 6 feet extending out from most stationary equipment perimeters, with slides typically needing extended clearance in front of the exit based on platform height.

Planning checks worth running before pouring or grading anything:

  • Where two pieces of equipment sit close together, their use zones often overlap, and the surfacing across that shared area must meet the higher of the two fall-height requirements.
  • Slide exits need clearance measured from the actual exit point, not the base of the ladder or climbing structure.
  • Walk the finished layout for obstacles inside the use zone: benches, tree roots, drainage grates, and sprinkler heads all count as hazards if they sit inside that 6-foot minimum.

A use zone with a gap in surfacing coverage is a liability even if every material spec on paper checks out.

Maintenance Checklist to Protect Critical-Height Performance

A compliant install on day one doesn’t stay compliant without upkeep, and surfacing degrades in ways that aren’t always visible from a quick walk-through.

  1. Check for compaction in loose-fill areas, especially high-traffic zones under swings and slide exits, where depth can drop well below the certified minimum within months.
  2. Look for displacement where fill has migrated to the edges of the use zone, leaving thin spots directly under equipment.
  3. Inspect for contamination from leaves, dirt, or standing water, all of which change how a surface absorbs impact.
  4. Watch for freeze-related stiffening in loose-fill or rubber surfaces during winter, when material that tested fine in summer can perform very differently cold.
  5. Keep records of the original lab critical-height data, any installed field-test results, ongoing maintenance logs, and dated photos, stored together rather than scattered across different files.
  6. Retest or remeasure after major weather events, heavy seasonal use, or any repair work that disturbs the surfacing.

Turf and Shock Pads vs. Loose Fill for Backyard Playscapes

Homeowners and small facility managers usually land on one of two paths: a maintained loose-fill system, or artificial turf over an engineered shock pad. Neither is universally better, but the tradeoffs are clear once you lay them out.

Turf with a shock pad tends to fit best when:

  • Maintenance time is limited and topping off loose fill every season isn’t realistic.
  • ADA accessibility is a factor, since a firm, stable turf surface rolls and wheels far better than sand or gravel.
  • The fall heights involved are moderate, matching what a certified shock pad is rated to handle.

Engineered wood fiber or rubber mulch can still make sense for larger commercial layouts or budget-constrained residential jobs, but expect regular raking, replenishment, and contamination checks.

Pro Tip: Before requesting a site visit or quote, know your equipment’s tallest designated play surface, roughly how much area needs coverage, and whether accessibility is a requirement. That alone cuts a lot of back-and-forth out of the estimate process.

How to Verify a Surfacing Product’s Critical-Height Claim

Before signing off on any surfacing product, check the data sheet for three things: a direct reference to F1292 testing, the name of the testing lab, and the test date. A vague “meets safety standards” claim with none of those specifics isn’t verification, it’s marketing copy. When a contract, warranty, or legal exposure is on the line, ask whether installed F3313 testing has ever been run on that exact surface.

The Overlooked Half of Playground Fall Height Compliance

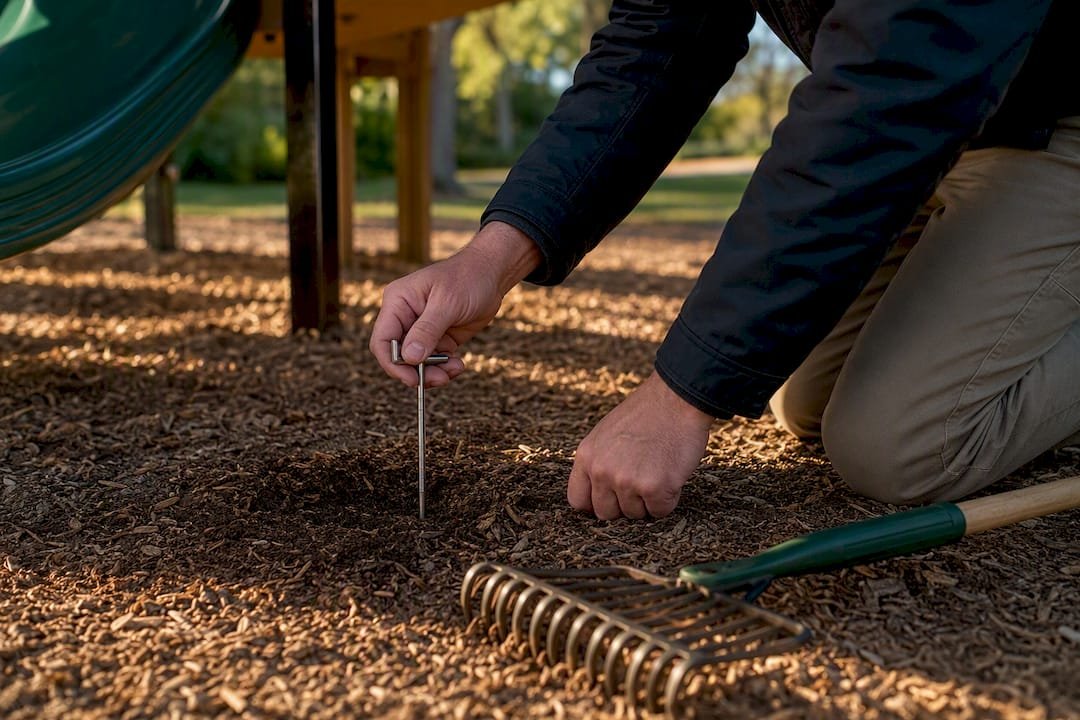

Inspector checking playground surfacing depth

Most guidance on this topic treats fall height as a math problem: measure the equipment, match a surfacing chart, done. That’s necessary but incomplete, and the gap shows up in maintenance failures far more often than in original design errors. A surfacing spec that was correct on installation day can drift out of compliance within a single season of heavy use, and nobody remeasures until something goes wrong.

The conventional advice underplays two things. First, composite structures deserve more scrutiny than single-post equipment gets, because overlapping fall heights are where measurement mistakes hide. Second, lab critical-height ratings get treated as permanent facts about a material when they’re really a starting condition that compaction, weather, and time will erode.

If there’s one priority worth putting ahead of everything else, it’s this: build a maintenance and remeasurement habit into the specification from day one, not as an afterthought. A surfacing choice like turf over an engineered shock pad earns its keep here, since it sidesteps a lot of the compaction and depth-loss problems loose fill creates. That’s a real, defensible advantage, not a sales pitch, and it’s worth weighing against the lower upfront cost of loose fill.

— Everson

Get Compliant Playscape Surfacing Installed Right the First Time

A qualified installer can provide homeowners, schools, and property managers a fixed alternative to the maintenance cycle loose fill demands: a turf and shock pad system installed once, with proper pad thickness and compaction control built into the job from day one.

Pave-n-turf

Getting fall height compliance right means the surfacing underneath your equipment has to match its rated critical height for the life of the installation, not just on inspection day. That’s exactly where a qualified installer earns their fee. Pave-n-turf’s Playscapes service handles site evaluation, pad specification, and installation together, so the depth and compaction decisions that loose-fill systems get wrong over time are built correctly from the start. Homeowners weighing turf against traditional fill can also look at Landscape Turf options for adjoining yard areas. If you’re specifying surfacing for a backyard playset or a larger commercial play area, consider requesting a site visit and obtaining a project estimate before your next planning deadline.

Where to Read the Standards Yourself

Sources

FAQ

What Is the Critical Fall Height for a Playground?

Critical fall height is the maximum height from which a surfacing material, tested under ASTM F1292, is unlikely to produce a life-threatening head injury on impact. It’s a property of the surfacing itself, not the equipment, and it must equal or exceed the equipment’s actual fall height to be compliant.

What Is the Fall Zone on a Playground?

The fall zone, also called the use zone, is the surfaced area surrounding equipment where a child could reasonably land after a fall. CPSC guidance sets a typical minimum of 6 feet from most equipment perimeters, with extended clearance often required in front of slide exits.

Can a Two-Year-Old Go Down a Slide?

Toddlers can use age-appropriate slides designed for early childhood play areas, but the surfacing beneath still has to meet the same fall-height and critical-height requirements as any other equipment. Supervision matters here as much as the hardware, since toddlers don’t yet judge slide speed or exit timing reliably.

How Does Pave-n-turf Help With Fall Height Compliance?

Pave-n-turf installs turf and engineered shock pad systems for backyard and commercial playscapes, specifying pad thickness to match each project’s actual fall height requirements. Pricing depends on the site and scope, so current estimates are available through a site visit request.
