60 mm or 80 mm Pavers: Driveway Specs Homeowners Need

Bypave.n.turf

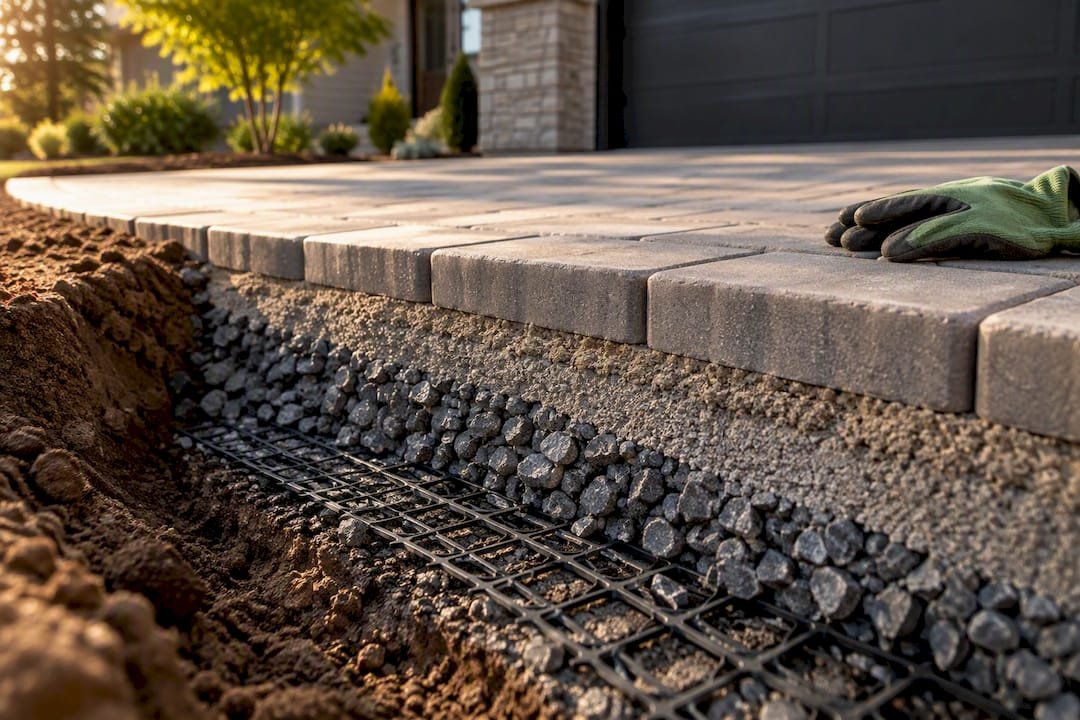

Paver driveway layers with reinforcement grid

For a typical residential driveway, use 2 3/8" (60 mm) pavers over a properly compacted base. Heavier vehicles, commercial traffic, or concentrated wheel loads call for 3 1/8" (80 mm) units instead. The thickness number matters less than what sits underneath it: ConcreteNetwork and the Concrete Masonry & Hardscapes Association (CMHA) both stress that base depth, soil condition, and drainage decide whether a driveway lasts twenty years or heaves apart in five.

TL;DR:

  • Thicker pavers cannot compensate for a poorly compacted or unstable base, making proper base depth crucial regardless of paver thickness.
  • Installing a minimum 6-inch compacted granular base is essential for driveways, with certain conditions like clay soil or poor drainage requiring even deeper bases.
  • Using the correct paver pattern, such as herringbone, helps distribute load and minimize cracking, especially with large or long units.
  • Site factors like clay, poor drainage, or heavy vehicle loads often necessitate adding 2 to 4 inches to base depth and using 80 mm pavers for durability.
  • Homeowners should verify all layers, base depth, and drainage conditions during installation, and consider professional assessment for complex or challenging sites.
Pave-n-turf
Build a Driveway That Lasts
Pave-N-Turf provides high-quality paving solutions for residential landscapes across the Dallas-Fort Worth area.

Explore paving solutions

Table of Contents

How Thick Should Driveway Pavers Be for Different Uses?

Paver thickness isn’t one-size-fits-all, and matching it to actual load is where most driveway problems start (or get avoided). The industry consensus, backed by CMHA and ConcreteNetwork, breaks down by application:

  • Pedestrian walkways and patios: 1 5/8" (40 mm) works for foot traffic only.
  • Patios with occasional light equipment: 2" (50 mm) covers grills, furniture, and the odd wheelbarrow.
  • Standard residential driveways: 2 3/8" (60 mm) handles passenger cars, SUVs, and light trucks.
  • Heavy-duty or commercial applications: 3 1/8" (80 mm) is built for delivery trucks, RVs, or repeated concentrated loads.

Here’s the part that trips up a lot of DIYers: thicker pavers don’t rescue a thin or poorly compacted base. You can install gorgeous 80 mm pavers over 3 inches of loose gravel and still watch your driveway rut within a year. Thickness and base depth work as a system, not a substitute for one another.

If your soil is unstable or you want to shave a couple inches off your excavation depth without sacrificing strength, geogrid products like DriveGrid can add reinforcement that reduces the required granular depth in some situations. It’s not a shortcut for every yard, but it’s worth asking a contractor about if your dig depth is limited by a slab, utility line, or existing hardscape.

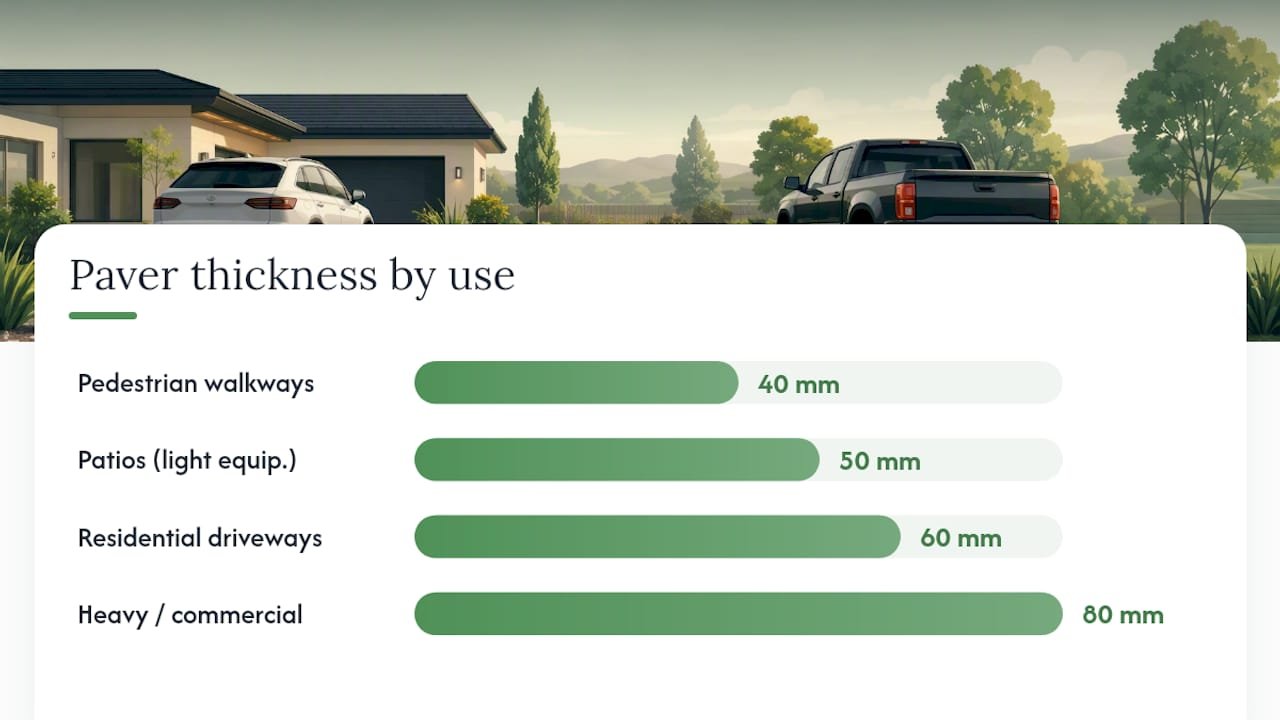

How Thick Should Driveway Pavers Be for Different Uses? — overview diagram

How Deep Does the Base Need to Be Under Driveway Pavers?

Base depth is where most driveway failures actually originate, not the pavers themselves. CMHA recommends a compacted granular base of 6 to 12 inches for residential driveways, with pedestrian areas needing only 4 to 6 inches.

By the numbers: Pedestrian paths need 4"–6" of compacted base. Residential driveways need 6" minimum, and often more depending on soil and drainage.

That “minimum” language matters. CMHA’s own guidance points out that ideal soil and drainage conditions are the exception, not the rule, so most homeowners end up adjusting upward from that 6-inch floor. A few site factors push base depth higher:

  • Clay soil compacts poorly and holds water, so it typically needs a deeper base and sometimes a layer of filter fabric to keep the base material from migrating into the subgrade.
  • Poor drainage (standing water, low grading) calls for extra depth plus attention to slope, since trapped moisture under pavers is what triggers freeze-thaw heaving.
  • Freeze-thaw climates need more depth because repeated freezing expands trapped water and pushes pavers out of alignment over winters.

Filter fabric between subgrade and base is cheap insurance. It keeps the two layers separate so your compacted base stays structurally sound instead of slowly sinking into softer soil below it.

What Layers Make Up a Paver Driveway System?

A driveway paver installation is a stack of layers, and skipping or shorting any one of them shows up as a problem within a season or two. From the ground up, according to standard installation guidance from MidAtlantic Concrete Products:

  1. Subgrade — the native soil, graded and compacted to a stable, even surface.
  2. Granular base — 6" to 12" of compacted aggregate, the layer that actually carries the load.
  3. Bedding sand — a 1" layer of coarse sand that gives pavers a level setting bed.
  4. Pavers — typically 2 3/8" thick for driveways, laid tight to the pattern.
  5. Jointing sand — swept into the joints between units to lock them together.
  6. Edge restraint — plastic, aluminum, or concrete edging around the entire perimeter.

Edge restraint doesn’t get much attention, but it’s what keeps the whole system from spreading apart under repeated vehicle loads. Without it, individual pavers slowly drift outward and joints open up, even if everything underneath was built correctly.

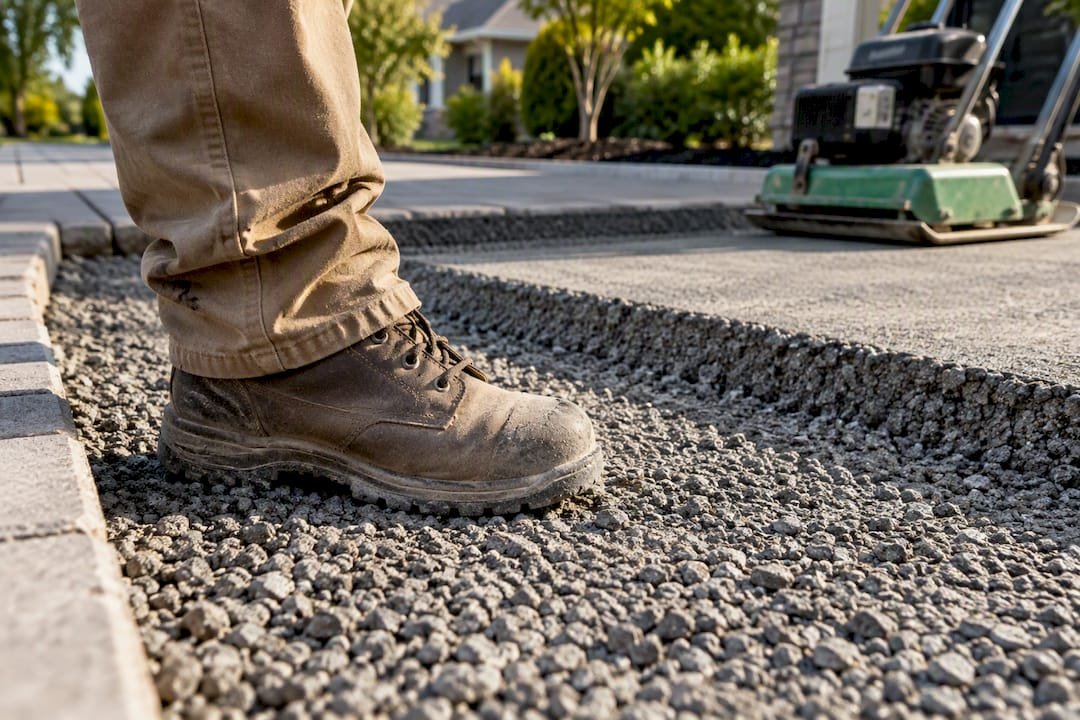

Pro Tip: Compact your base in lifts of 4 inches or less, running a plate compactor over each layer before adding the next. Test firmness by walking the surface. If your heel sinks or leaves a mark, it needs another pass.

Boot testing compacted driveway base

Does Paver Size and Pattern Affect How Thick You Need to Go?

Unit size and layout change how much stress a paver has to absorb on its own, which is why pattern choice belongs in the same conversation as thickness. The key number here is aspect ratio: length divided by thickness. For residential driveways, keep that ratio at or below 4:1, a guideline echoed in both Lawn & Landscape installation guidance and CMHA’s Pav-Tec technical bulletins. A paver that’s too long relative to its thickness becomes a lever arm under wheel loads, and that’s exactly how cracking starts.

Herringbone patterns outperform other layouts for vehicular traffic because the interlocking angles distribute load across multiple units instead of concentrating it on one seam line. Running-bond patterns, by contrast, create straight joint lines that align with tire paths and wear faster.

A few practical rules for choosing pattern by expected load:

  • Use herringbone across the full width of any area that sees regular vehicle traffic.
  • Keep large-format slabs out of primary wheel tracks, even when they’re thick enough on paper.
  • Reserve basket-weave or running-bond patterns for low-traffic borders and walkways.

When Do Site Conditions Force You to Upgrade the Spec?

Baseline numbers assume decent soil, flat grading, and a mild climate. Real yards rarely deliver all three at once, so CMHA offers a workable rule of thumb: add roughly 50% more base depth for each adverse factor present, or 2 to 4 inches depending on severity.

Quick reference: One adverse factor (clay soil, poor drainage, or freeze-thaw) can mean adding 2"–4" to your base depth. Stack two or three factors and you’re often looking at the top end of that 12-inch range, or beyond it.

Three conditions account for most upgrades:

  • Clay or expansive soil shifts with moisture, so it needs a deeper base and sometimes geotextile fabric to isolate it from the aggregate above.
  • Standing water or flat grading without proper slope traps moisture under the pavers and accelerates freeze-thaw damage.
  • Regular heavy vehicles (RVs, box trucks, trailers) call for 80 mm pavers, a thicker base, and sometimes a full engineered sub-slab.

If you’re stacking two or more of these factors, or dealing with a steep grade change, that’s the point to call a structural or geotechnical professional rather than guessing at extra inches.

What Should You Check Before, During, and After Installation?

A driveway paver job succeeds or fails based on a handful of checkpoints, most of which are easy for a homeowner to verify without special tools.

  1. Before digging: Confirm final grade and slope (aim for a slight pitch away from structures), and call for a utility locate before excavation.
  2. During base work: Verify base depth with a tape measure at multiple points and compact in lifts, checking for firmness with a plate compactor.
  3. Before laying pavers: Confirm edge restraint is anchored along the entire perimeter, not just the corners.
  4. After installation: Sweep jointing sand fully into every joint and run the compactor over the finished surface to lock units together.

Red flags that mean it’s time to call a professional: standing water that won’t drain within 24 hours, visible soil movement after rain, a slope that exceeds what basic grading tools can correct, or any excavation depth beyond what your equipment can safely reach.

Why Pave-N-Turf’s Field Experience Matters Here

There are many contractors experienced with installing pavers and turf in areas with clay-heavy soil that often do not match textbook base depth recommendations. Field crews adjust base and drainage plans site by site, which is a habit worth borrowing even if you’re doing the work yourself. Complex grading, drainage, or heavy-load driveways still benefit from a professional look before you dig.

— Everson

Get a Professional Assessment for Your Driveway Project

Getting the base depth and paver thickness right on paper is one thing. Getting it right on your actual lot, with your actual soil, is another. Some professional installers handle both site assessments and installation for homeowners in many urban areas, from assessment and base design through final paver installation.

Pave-n-turf

That means no guessing at whether your clay soil needs 8 inches of base or 10, and no renting a plate compactor for a one-time job. The team evaluates drainage, grading, and expected vehicle load before recommending a spec, then installs the landscape pavers to match. If you’re weighing a DIY driveway against hiring it out, start with a site assessment and get a clear picture of what your specific lot actually needs before you order a single paver.

Sources

FAQ

Can I Use 2-Inch Pavers for a Driveway?

Two-inch (50 mm) pavers are built for patios and light foot traffic, not vehicle loads. For a driveway carrying cars or trucks, ConcreteNetwork and CMHA both point to 2 3/8" (60 mm) as the standard minimum, with 3 1/8" (80 mm) for heavier use.

How Much Does a 20×20 Paver Driveway Cost?

Driveway paver costs vary widely by region, material, and base conditions, and no fixed national figure applies reliably to every project. Pave-N-Turf provides project-specific quotes after a site assessment through its landscape pavers service, since soil type and base depth affect the total.

Is 3.5 Inches Thick Enough for a Driveway?

Yes, thicker than the standard 2 3/8" residential recommendation and above the 3 1/8" heavy-duty spec, but thickness alone doesn’t guarantee performance. A paver must still be installed over the 6" to 12" compacted base CMHA recommends.

Is 2-Inch Asphalt Good for a Driveway?

That question concerns asphalt, a different material system with its own depth standards separate from concrete paver specs. Asphalt driveways typically need a base and surface course built to different engineering guidelines than the paver base depths covered here, so consult an asphalt-specific standard for that answer.

What Is the Minimum Paver Thickness for a Residential Driveway?

The minimum for standard residential vehicle traffic is 2 3/8" (60 mm), a figure confirmed by both ConcreteNetwork and CMHA. Going thinner risks cracking under normal car and light truck weight, even with a solid base.
