Why Pavers Shift After Freeze and Thaw: Start With the Base

Bypave.n.turf

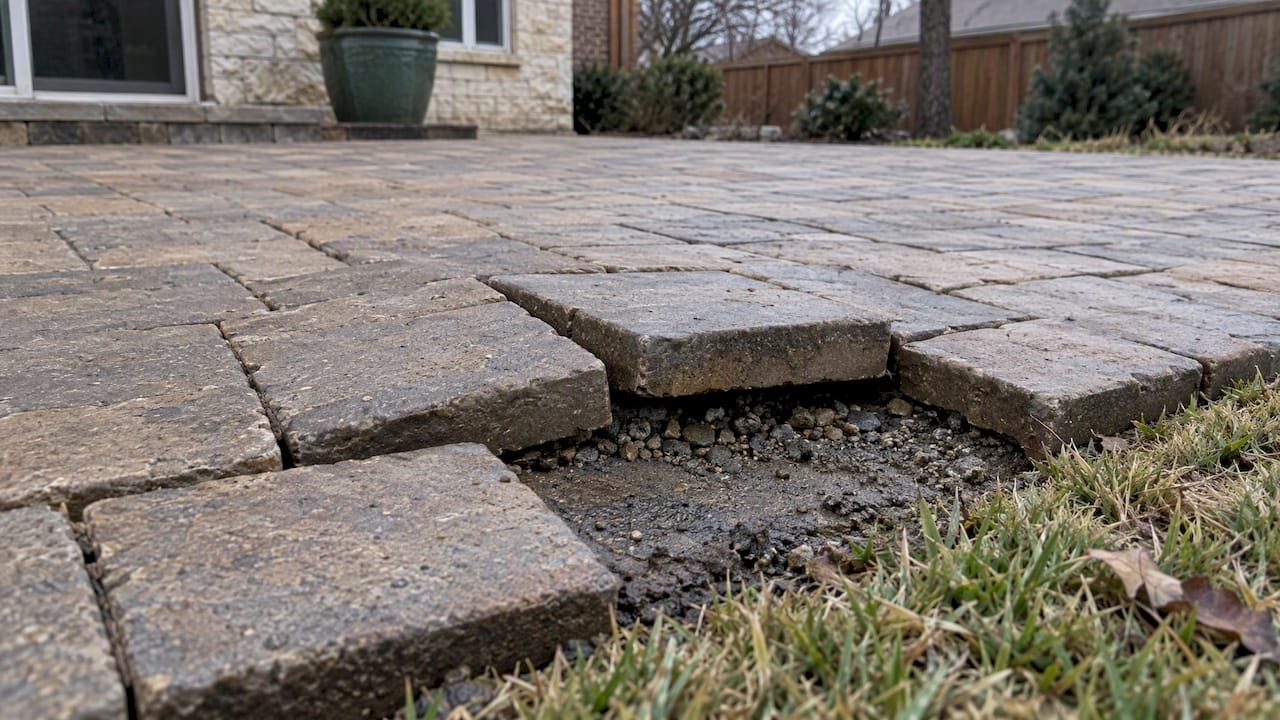

Uneven patio pavers expose damp aggregate base

Properly built interlocking pavers resist freeze thaw damage far better than rigid slabs, as long as the base and drainage underneath them are done right. ASTM C936 sets the benchmark for durable concrete paving units, and FHWA guidance on cold climate pavement design backs up what contractors like us at Pave-N-Turf see on real job sites: the paver itself matters less than what’s underneath it.

Interlocking concrete and porcelain pavers typically outperform poured slabs in freeze thaw zones because they’re built from modular units that flex slightly instead of cracking. But that advantage only shows up when the base depth, compaction, drainage, and edge restraint are handled correctly. Pick the wrong installer or skip a step, and even the best paver material will heave, rock, or settle after a few hard winters.

TL;DR:

  • Water trapped in joints or the base expands about 9% when frozen; saturated soil weakens after thaw, causing heaving, rocking, and settlement during winter cycles.
  • Driveways commonly need 60 or 80 mm pavers, depending on load and soil, while pedestrian patios and walkways often use 40 to 50 mm units.
  • Porcelain absorbs little water but can crack under point loads without a flat, compacted base and firm edge restraint; natural stone needs documented frost resistance.
  • On clay or silt, use geotextile over a stone reservoir, mechanically compact each open graded layer, and install underdrains that discharge water to an outlet.
  • Use a plastic shovel, apply deicer only at label rates, and inspect each spring and fall for loose pavers, missing joint sand, or rocking.
Pave-n-turf
Build a More Stable Paver Base
Pave-N-Turf installs landscape pavers designed for durable, low-maintenance outdoor spaces across the Dallas-Fort Worth area.

Explore paving solutions

Table of Contents

How Freeze Thaw Cycles Damage Paving Systems

Freeze thaw damage starts with water, not with the paver itself. When water trapped in the joints or base layer freezes, it expands by about 9%, and that expansion pushes against everything around it, according to UMN Extension. Repeat that cycle dozens of times each winter, and small pressures add up to real structural movement.

There are two patterns worth knowing:

  • Primary heave happens when ice forms directly under the pavement surface and lifts it.
  • Secondary heave comes from deeper frost penetration, where moisture migrates upward through capillary action and refreezes, lifting the whole system from below.

Saturated base and subgrade soils make everything worse. A base that can’t drain holds water right where it will freeze, and when that water thaws, the soil underneath temporarily loses strength. That’s when you see settlement, rocking pavers, and soft spots that weren’t there in October.

Water expands when it freezes, and that pressure, combined with saturated base layers, is the core driver of frost heave in paving systems. UMN Extension ties this moisture driven mechanism directly to the freeze thaw damage homeowners see on patios and walkways.

Deicing salts complicate the picture further. They lower the freezing point of water near the surface, which can pull more moisture into the joints and base before a freeze, and they accelerate material degradation over time. None of this means salt is off limits, it just means it needs to be used carefully, which we’ll cover in the maintenance section below.

Why Interlocking Pavers Outperform Rigid Slabs in Cold Climates

A poured concrete slab is one continuous piece. When frost heave pushes on part of it, the whole slab has to absorb that stress, and concrete doesn’t bend. It cracks.

Interlocking pavers work differently. Each unit is small, and the joints between them act like built in expansion points.

  • Small movements get distributed across many units instead of concentrated in one slab.
  • Joint sand and a well graded base let vertical shifts happen locally without breaking anything.
  • Individual units can be lifted, releveled, and reset without tearing out the whole surface.

This is exactly the kind of systems thinking the ACI 201 guide to durable concrete describes: durability isn’t about one ingredient, it’s about how materials, drainage, and workmanship work together.

Material specs still matter here. A paver with low water absorption and adequate compressive strength will hold up to repeated freezing better than a porous, weak unit. But that same high quality paver set on a poorly drained, uncompacted base will still rock and heave. The system carries the load, not just the unit sitting on top of it.

Choosing Concrete, Porcelain, or Natural Stone for Cold Weather

Once you understand that the base does most of the work, the paver material becomes a question of matching properties to your site and traffic load.

Concrete pavers built to ASTM C936 specifications are evaluated on compressive strength and water absorption, with absorption capped at a low percentage to minimize water uptake. Lower absorption means less water gets into the unit itself to freeze and expand internally.

Porcelain pavers tend to have very low water absorption, which is a real advantage in freeze thaw climates. That said, porcelain is thinner and more brittle than concrete in some formats, so it depends even more heavily on a flat, well compacted base and solid edge restraint to avoid cracking under point loads.

Natural stone varies enormously. Some granites and quartzites handle freeze thaw cycles well for decades. Other sedimentary stones absorb water readily and can flake or spall within a few seasons. If you’re choosing natural stone, ask for documented frost resistance rather than assuming “stone is stone.”

  • Pedestrian patios and walkways typically call for thinner pavers, often in the 40 to 50 mm range.
  • Driveways and areas with vehicle traffic need thicker units, commonly 60 mm or 80 mm pavers depending on load and soil conditions.

Whatever material you choose, confirm it’s backed by a spec like ASTM C936 or a documented freeze thaw test rather than a marketing claim alone.

Base Design, Drainage, and Compaction: Getting the Hidden Layer Right

This is the layer nobody sees once the project is finished, and it’s the one that determines whether your pavers last fifteen years or fail in three.

  1. Build a coarse stone reservoir below the paver base. Open graded stone with minimal fines acts as a capillary barrier, keeping groundwater from wicking up into the base and freezing.
  2. Match base thickness to soil type and traffic load. Clay and silt subgrades need deeper, more forgiving base sections than well draining sandy soils, and driveways need more base depth than a garden path.
  3. Mechanically compact every open graded layer. Open graded aggregate does not self-compact just because it’s been placed and rained on. Skipping this step is one of the most common causes of later settlement.
  4. Add geotextile fabric where clay or silt subgrades are present, to keep fines from migrating up into the clean stone and clogging the drainage you just built.
  5. Install underdrains that discharge to a positive outlet, placed below the stone reservoir so water actually leaves the system instead of pooling under the pavers.
  6. Set edge restraints along every perimeter. Without them, the interlock between units has nothing to push against, and lateral movement during freeze thaw cycles will slowly walk the whole field apart.

FHWA guidance specifically recommends coarse stone reservoirs, underdrains, and inspection ports as standard features of cold climate permeable pavement design, not optional upgrades. For a deeper look at depth requirements and material choices by soil type, our paver base requirements guide breaks down the specifics.

Pro Tip: Ask your installer what compaction equipment they use on open graded base, not just whether they compact it, since a plate compactor sized for sand will not properly densify coarse stone.

Installation Shortcuts That Lead to Winter Failures

Most freeze thaw failures trace back to a handful of repeated mistakes, and they’re worth knowing whether you’re hiring a contractor or checking one’s work.

  • Assuming open graded stone compacts itself. It doesn’t, and skipping mechanical compaction almost guarantees settlement within a year or two.
  • Skipping geotextile fabric on clay or silt soils, or using the wrong fabric type, which lets fine soil particles migrate into the clean stone and choke off drainage.
  • Treating polymeric sand as a universal fix. It stabilizes joints and resists washout, but it doesn’t compensate for a poorly built base and isn’t a substitute for proper compaction or drainage.
  • Leaving out edge restraint to save a step, which removes the lateral support the whole interlocking system depends on.

When a section has already failed, full replacement usually isn’t necessary. Lifting the affected pavers, correcting the base underneath, reestablishing drainage, and relaying the same units is standard practice and often restores a failing section to full performance.

Pro Tip: If a paver area has one isolated low spot, it’s almost always a base problem directly below it, not a defect in the paver itself.

Winter Maintenance That Protects Your Pavers

A little seasonal attention goes a long way toward keeping freeze thaw damage from ever starting.

  1. Clear snow with a plastic or rounded blade shovel rather than a metal edged one, which can chip paver surfaces and damage sealants over time.
  2. Choose deicers carefully and follow label rates. Excess chloride exposure accelerates material degradation and harms nearby soil and plants, according to UMN Extension, so apply the minimum amount needed and sweep up any excess once ice has cleared.
  3. Use sand sparingly for traction. It helps with grip on icy surfaces, but on permeable paver systems it can clog the open joints that are supposed to let water drain through.
  4. Walk your paver areas each fall and spring, checking for loose units, joint sand loss, or small rocking spots before they grow into bigger problems.

Permeable pavement systems can resist freeze thaw damage effectively when they’re designed with proper underdrains and inspection ports, but ongoing maintenance to prevent clogging is what keeps that performance intact over time, per FHWA. Our guide to paver patio maintenance covers a full seasonal checklist, and the team at Fernandez & Sons has written a solid ASTM backed rundown of freeze thaw installation rules worth reading if you want the contractor’s side of the story.

How We Approach Freeze Thaw Resistant Paver Installations

On every landscape paver project, we build the base system first and treat it as the part that actually determines how the surface performs years down the road. That means proper excavation depth, a compacted open graded stone layer sized to the soil we’re working with, and edge restraint set before a single paver goes down.

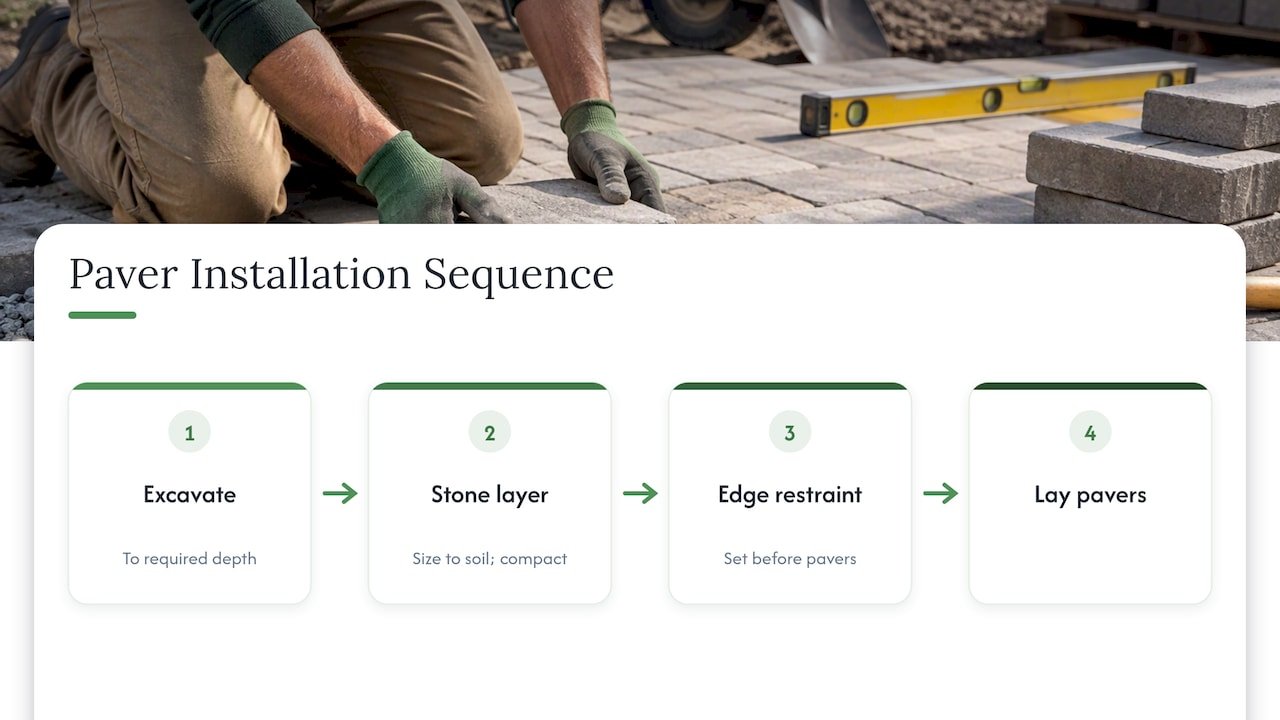

Paver installation layers and sequence

We also talk with clients about seasonal upkeep as part of the installation, not as an afterthought. Joint sand checks, drainage inspections, and smart deicer use all extend the life of a paver patio or driveway, and we walk homeowners through what to watch for once the project wraps.

Why the Base Matters More Than the Brand

Most homeowners spend their research time comparing paver colors and finishes, then treat the base as a line item to minimize. That’s backwards. A mid-range paver on a properly engineered base will outlast a premium paver set on cut corners, every time.

The smarter move is thinking in terms of lifecycle cost. Spending a bit more upfront on proper excavation, drainage, and compaction almost always costs less than repeated lifting and relaying over the following decade. If your site has clay soil, poor drainage, or a noticeable slope, get a professional assessment before you commit to a design.

— Everson

Get a Freeze Thaw Ready Paver Installation

Landscape pavers can be built around the same base, drainage, and compaction standards covered above, for patios, walkways, and driveways that need to hold up through repeated winters. A proper project starts with a site assessment to check soil type, slope, and drainage needs before designing the base.

Pave-n-turf

Pair pavers with a seasonal maintenance routine and the freeze thaw risks drop significantly over the life of the surface. Reach out through Pave-N-Turf to schedule a site visit and get a plan built for your yard.

FAQ

Will paver efflorescence go away?

Efflorescence, the white, chalky residue that sometimes appears on concrete pavers, is typically a temporary surface mineral deposit that fades with normal weathering and foot traffic over a season or two. Light scrubbing with water and a stiff brush can speed up removal, and it generally doesn’t indicate a structural problem.

What ice melter is safe for pavers?

Deicers used sparingly and according to label rates are the safest approach, since excess chloride exposure can accelerate material degradation on concrete, stone, and surrounding soil, per UMN Extension. Removing snow mechanically first and applying the minimum amount needed to critical walking areas reduces both material wear and environmental impact.

What does freeze thaw do to concrete?

Water trapped inside concrete or its base expands by about 9% when it freezes, pressurizing the material and causing surface scaling, cracking, or heaving over repeated cycles. The ACI 201 guide to durable concrete ties this directly to aggregate quality, water to cement ratio, and curing practices, since durability depends on all of these working together rather than any single factor.

Does polymeric sand harden like cement?

Polymeric sand hardens into a semi-rigid joint filler once it cures, which helps resist washout and weed growth, but it isn’t a structural material like cement and can’t compensate for a poorly built base. It stabilizes the joints between pavers, not the base or drainage system underneath them.
